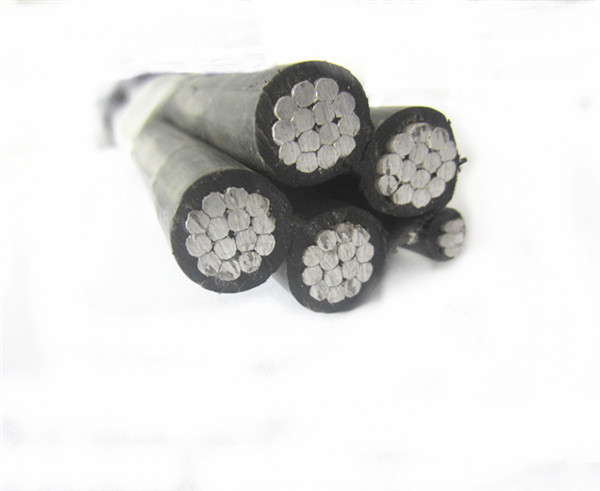

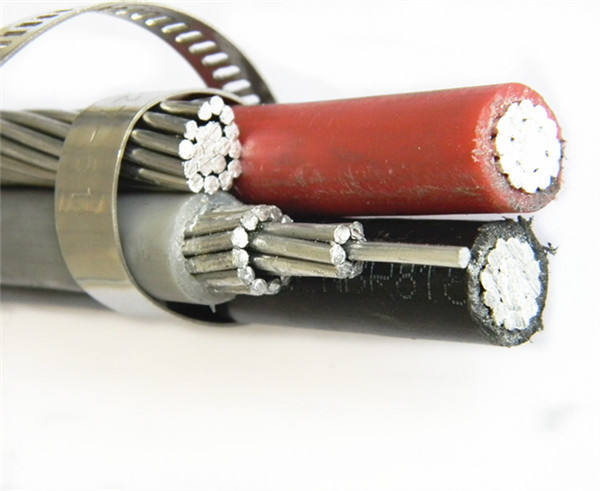

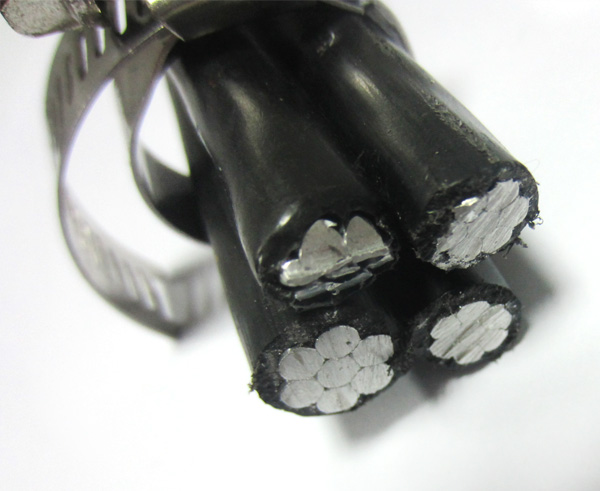

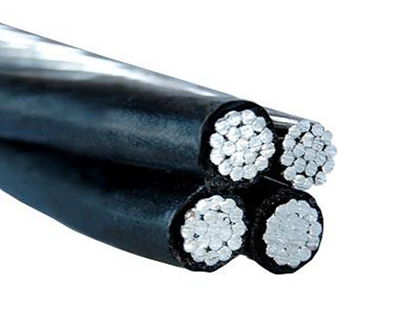

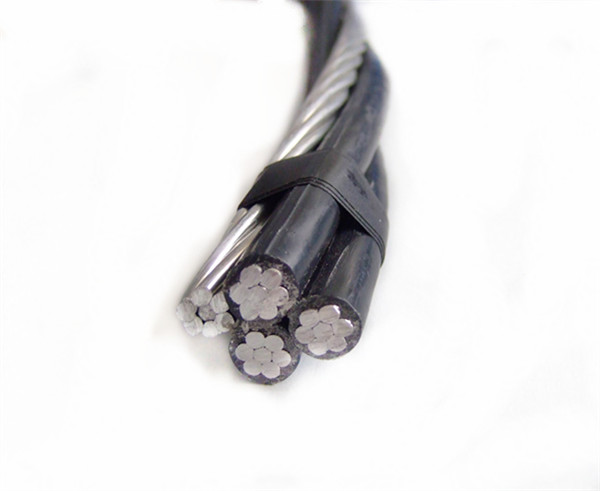

ABC cable--Quadruplex Service Drop Wire

  ► Application

Used to supply 3-phase power, usually from a pole-mounted transformer, to the user's service head where connection to the service entrance cable is made. To be used at voltages of 600 volts phase-to-phase or less and at conductor temperatures not to exceed 75°C for polyethylene insulated conductors or 90°C for cross-linked polyethylene (XLPE) insulated conductors.

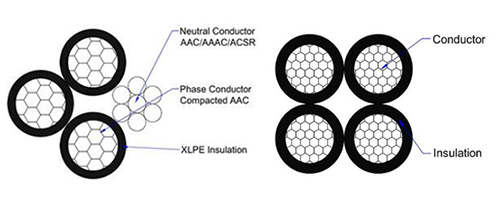

► ConstructionConductors are concentrically stranded, compressed 1350-H19 aluminum. Insulated with either polyethylene or cross-linked polyethylene (XLPE). Neutral messengers are concentrically stranded 6201, AAC, or ACSR. Conductors are manufactured with ridges for phase identification (one conductor one ridge, one conductor two ridges, one conductor plain.)


► StandardQuadruplex service drop cable meets or exceeds the following ASTM specifications:
• B-230 Aluminum Wire, 1350-H19 for Electrical Purposes.
• B-231 Aluminum Conductors, Concentric-Lay-Stranded.
• B-232 Aluminum Conductors, Concentric-Lay-Stranded, Coated Steel Reinforced (ACSR).
• B-399 Concentric-Lay-Stranded, 6201-T81 Aluminum Alloy Conductors.
• B-901 Compressed Round Stranded Aluminum Conductors Using Single Input Wire.
Quadruplex service drop cable meets or exceeds all applicable requirements of ICEA S-76-474 .

 ► Parameter

► Advantages1, There is a professional design engineer team, before manufacturing, all of the product drawing will be approved by CSBTS (State Bureau of Quality Technical Supervision), and then the cable could be produced only if qualified.

2, To ensure the raw materials quality, all the copper are special-used for cable with the Inspection Certificates. The raw material is inspected when entering factory, and only the qualified material could be put in storage and used for production.

3, To ensure the product quality, there is a professional high level quality laboratory, most of the key technology date will be checked by high precision instrument

4, To ensure no problems before delivery, all the raw materials and cables are supervised and inspected again by the experts of inspection institution for inspection institution for cable. we could offer the international quality certification of ISO9001 and CE, and the inspection report of SGS, BV, etc, Quality Certificates.

► Company OverviewFounded in 1988, Henan Guowang (State-Grid) Cable Co., Ltd. is located in Xinzheng New Technology Industrial Zone, covering an area of 40,000 square meters and has own modern production workshops, hundreds of professional and technical employees, owning unique geographic location and optimum investment environment. Guowang focuses on the production and innovation of cables, our main products include: Aluminum series, Aerial insulated series, Low voltage power cable series, High voltage power cable and Rubber cable. We are obtaining vigorous development with an amazing speed in China and also becoming a very influential leader in cable area step by step
