Your position: Home > Products > Bare Conductors

AAC-All Aluminum Conductor

Code number: 16
Area: 15.9mm²
Number of wires: No.7
Wire diameter: 1.7mm
Conductor diameter: 5.1mm
Linear mass: 43.4kg/km

We're here to help:

Easy ways to get the answers you need.

(※ Click this button to inquiry)

share with :

Specifications
Technical Data
Inquiry

■ Specifications

►Description
Concentric lay stranded Aluminum Conductor ( AAC) is made up of one or more strands of hard drawn 1350 aluminum alloy. These conductors are used in low, medium and high voltage overhead lines. AAC has seen extensive use in urban areas where spans are usually short but high conductivity us required. The excellent corrosion resistance of aluminum has made AAC a conductor of choice in coastal areas. Because of its relatively poor strength to weight ratio, AAC had limited use in transmission lines and rural distribution because of long spans utilized.

►Application
This all aluminum conductor is a kind of aluminum product made through stranding aluminum wires. It is used for the electricity distribution lines with short span length and small load-carrying capability of the pole. The AAC provides reliable performance for overhead power transmission and distribution lines. This standard covers hard drawn circular aluminum wires for electric purposes to be used as component wires of hard drawn aluminum stranded cables and aluminum conductor steel reinforced

►Construction

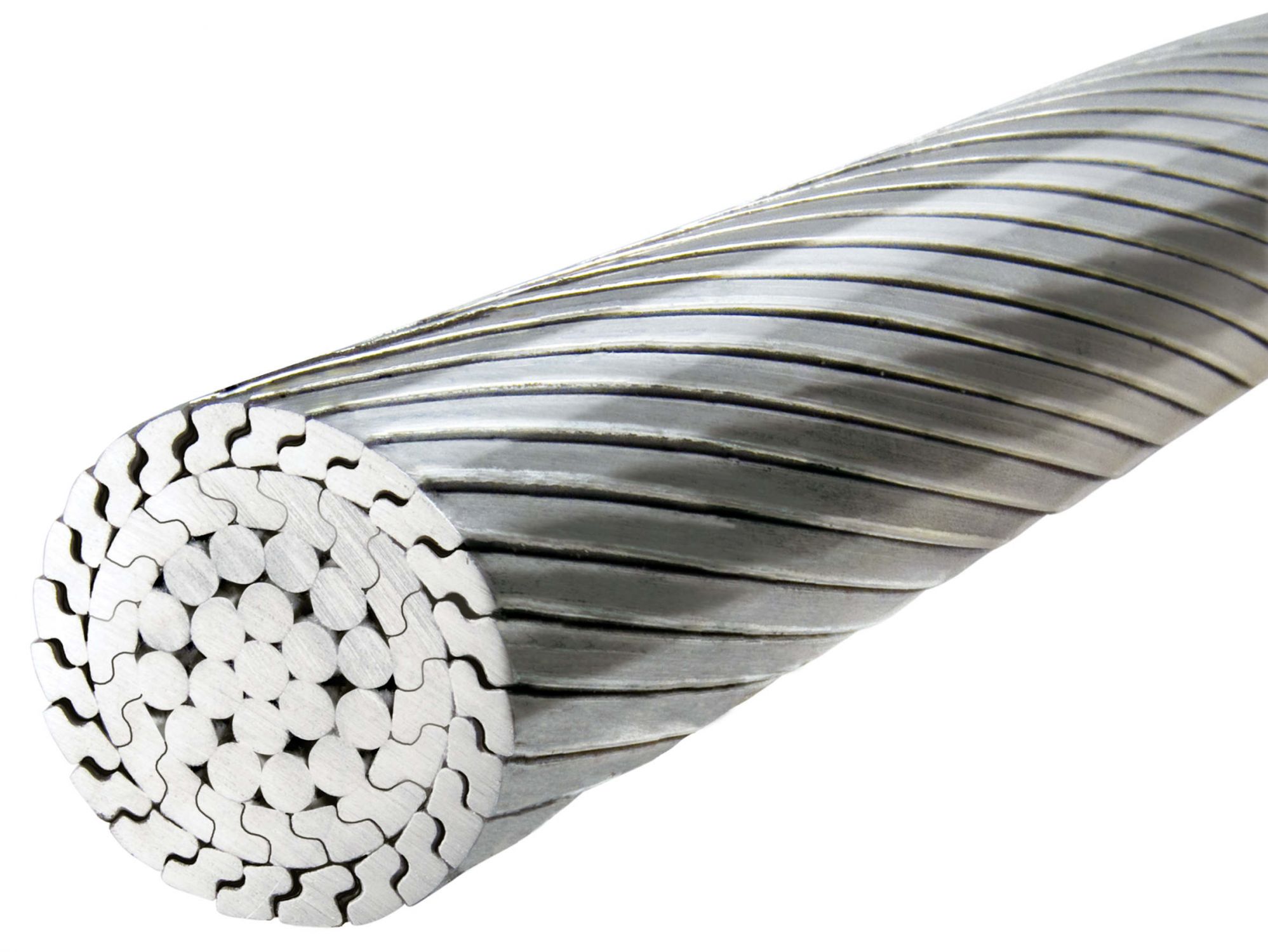

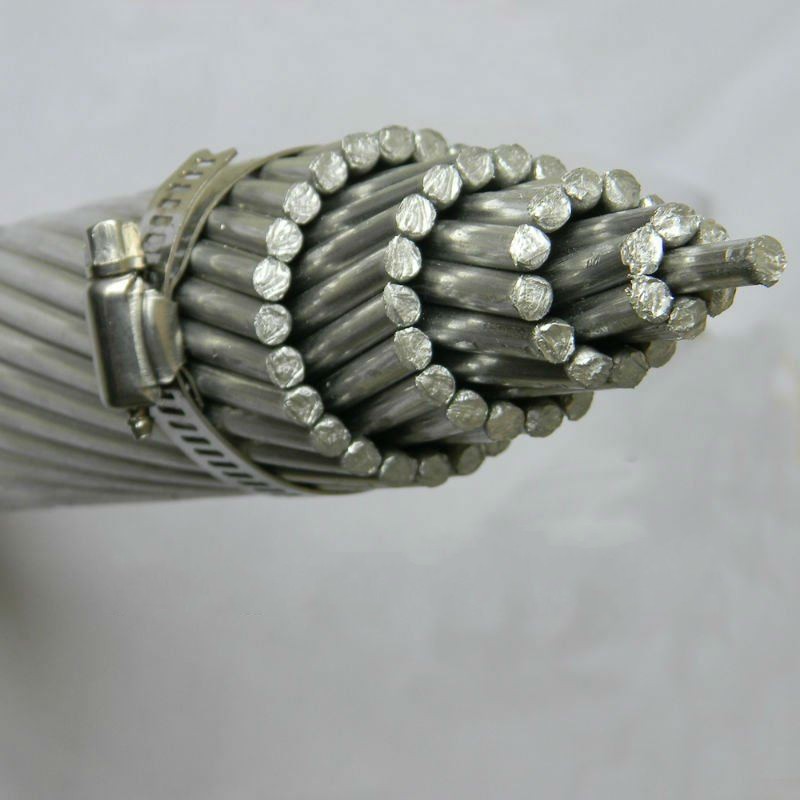

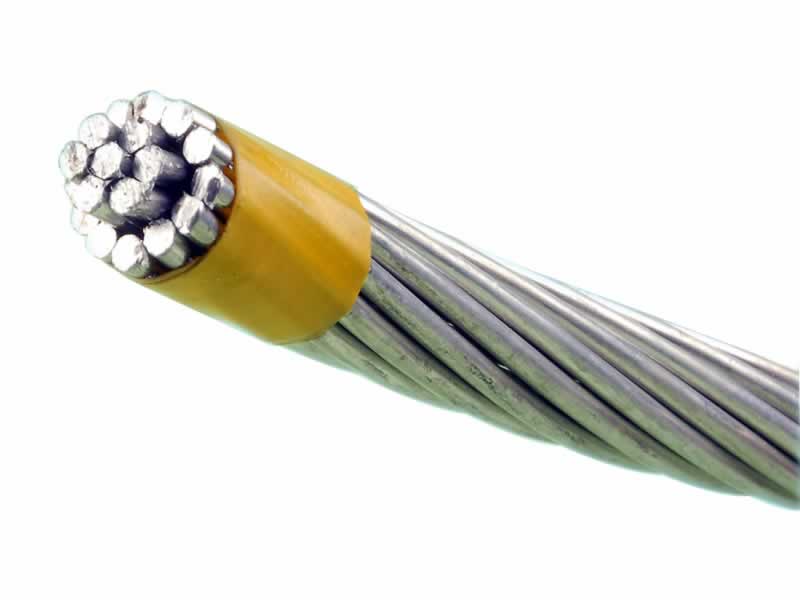

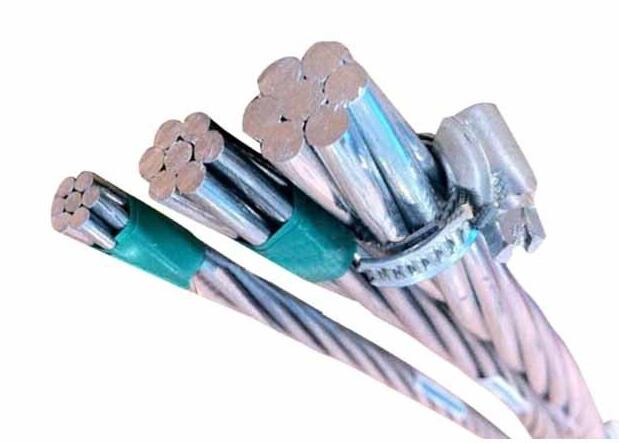

AAC is a concentric-lay-stranded conductor consisting of aluminum alloy 1350-H19 wires available in both single-layer and multi-layer constructions

►Standard
ASTM B 231, BS 215 Part 1, IEC 61089, DIN 48201, CSA C 49, JIS C 3109, etc

■ Technical Data

AAC Conductor with ASTM B231 standard

Code word	Size of Conductor	Stranding and Wire Diameter	Overall Diameter	Max.D.C. Resistance at 20°C	Code word	Size of Conductor	Stranding and Wire Diameter	Overall Diameter	Max.D.C. Resistance at 20°C
Code word	AWG or MCM	mm	mm	ohm/km	Code word	AWG or MCM	mm	mm	ohm/km
Peachbell	6	7/1.554	4.67	2.1692	Verbena	700	37/3.493	24.45	0.0813
Rose	4	7/1.961	5.89	1.3624	Nasturtium	715.5	61/2.75	24.76	0.0795
Lris	2	7/2.474	7.42	0.8577	Violet	715.5	37/3.533	24.74	0.0795
Pansey	1	7/2.776	8.33	0.6801	Cattail	750	61/2.817	25.35	0.0759
Poppy	1/0	7/3.119	9.36	0.5390	Petunia	750	37/3.617	25.32	0.0759
Aster	2/0	7/3.503	10.51	0.4276	Lilac	795	61/2.90	26.11	0.0715
Phlox	3/0	7/3.932	11.80	0.3390	Arbutus	795	37/3.724	26.06	0.0715
Oxlip	4/0	7/4.417	13.26	0.2688	Snapdragon	900	61/3.086	27.78	0.0632
Valerian	250	19/2.913	14.57	0.2275	Cockscomb	900	37/3.962	27.73	0.0632
Sneezewort	250	7/4.80	14.4	0.2275	Goldenrod	954	61/3.177	28.6	0.0596
Laurel	266.8	19/3.01	15.05	0.2133	Magnolia	954	37/4.079	28.55	0.0596
Daisy	266.8	7/4.96	14.9	0.2133	Camellia	1000	61/3.251	29.36	0.0569
Peony	300	19/3.193	15.97	0.1896	Hawkweed	1000	37/4.176	29.23	0.0569
Tulip	336.4	19/3.381	16.91	0.1691	Larkspur	1033.5	61/3.307	29.76	0.0550
Daffodil	350	19/3.447	17.24	0.1625	Bluebell	1033.5	37/4.244	29.72	0.0550
Canna	397.5	19/3.673	18.36	0.1431	Marigold	1113	61/3.432	30.89	0.0511
Goldentuft	450	19/3.909	19.55	0.1264	Hawthorn	1192.5	61/3.551	31.05	0.0477
Syringa	477	37/2.882	20.19	0.1193	Narcissus	1272	61/3.668	33.02	0.0477
Cosmos	477	19/4.023	20.12	0.1193	Columbine	1351.5	61/3.78	34.01	0.0421
Hyacinth	500	37/2.951	20.65	0.1138	Carnation	1431	61/3.89	35.03	0.0398
Zinnia	500	19/4.12	20.6	0.1138	Gladiolus	1510.5	61/4.00	35.09	0.0376
Dahlia	556.5	19/4.346	21.73	0.1022	Coreopsis	1590	61/4.099	36.51	0.03568
Mistletoe	556.5	37/3.114	21.79	0.1022	Jessamine	1750	61/4.302	38.72	0.0325
Meadowsweet	600	37/3.233	22.63	0.0948	Cowslip	2000	91/3.76	41.40	0.02866
Orchid	636	37/3.33	23.31	0.0894	Lupine	2500	91/4.21	46.30	0.0230
Heuchera	650	37/3.366	23.56	0.0875	Trillium	3000	127/3.90	50.75	0.0192
Flag	700	61/2.72	24.48	0.0813	Bluebonnet	3500	127/4.21	54.80	0.01653

AAC Conductor with BS 215 standard

Code Name	Nominal Cross Section	No./Dia.of Stranding Wires	Overall Diameter	Approx. Weight	Max.D.C Resistance of Conductor at 20℃	Calculated Breaking Load	Final Modulus of Elasticity	Coefficient of Linear Expansion
Code Name	mm2	No./mm	mm	kg/km	ohm/km	daN	hbar	/℃
Midge	22	7/2.06	6.18	64	1.227	399	5900	23 x 10-6
Aphis	25	3/3.35	7.2	73	1.081	411	5900	23 x 10-6
Gnat	25	7/2.21	6.6	73	1.066	459	5900	23 x 10-6
Weevil	30	3/3.66	7.9	86	0.9082	486	5900	23 x 10-6
Mosquito	35	7/2.59	7.8	101	0.7762	603	5900	23 x 10-6
Ladybird	40	7/2.79	8.4	117	0.6689	687	5900	23 x 10-6
Ant	50	7/3.10	9.3	145	0.5419	828	5900	23 x 10-6
Fly	60	7/3.40	10.2	174	0.4505	990	5900	23 x 10-6
Bluebottle	70	7/3.66	11	202	0.3881	1134	5900	23 x 10-6
Earwing	75	7/3.78	11.4	215	0.3644	1194	5900	23 x 10-6
Grasshopper	80	7/3.91	11.7	230	0.3406	1278	5900	23 x 10-6
Clegg	90	7/4.17	12.5	262	0.2994	1453	5900	23 x 10-6
Wasp	100	7/4.39	13.17	290	0.2702	1600	5900	23 x 10-6
Beetle	100	19/2.67	13.4	293	0.2704	1742	5600	23 x 10-6
Bee	125	7/4.90	14.7	361	0.2169	1944	5900	23 x 10-6
Cricket	150	7/5.36	16.1	432	0.1818	2385	5900	23 x 10-6
Hornet	150	19/3.25	16.25	434	0.1825	2570	5600	23 x 10-6
Caterpillar	175	19/3.53	17.7	512	0.1547	2863	5600	23 x 10-6
Chafer	200	19/3.78	18.9	587	0.1349	3240	5600	23 x 10-6
Spider	225	19/3.99	20.0	652	0.1211	3601	5600	23 x 10-6
Cockroach	250	19/4.22	21.1	731	0.1083	4040	5600	23 x 10-6
Butterfly	300	19/4.65	23.25	888	0.08916	4875	5600	23 x 10-6
Moth	350	19/5.00	25	1027	0.07711	5637	5600	23 x 10-6
Drone	350	37/3.58	25.1	1029	0.07741	5745	5600	23 x 10-6
Locust	400	19/5.36	26.8	1179	0.06710	6473	5600	23 x 10-6
Centipede	400	37/3.78	26.46	1145	0.06944	6310	5600	23 x 10-6
Maybug	450	37/4.09	28.6	1342	0.05931	7401	5600	23 x 10-6
Scorpion	500	37/4.27	29.9	1460	0.05441	7998	5600	23 x 10-6
Cicada	600	37/4.65	32.6	1733	0.04588	9495	5600	23 x 10-6
Tarantula	750	37/5.23	36.6	2191	0.03627	12010	5600	23 x 10-6

AAC Conductor with CSA C49 standard

Code Name	KCMIL or AWG	Cross Section of Aluminum	Size			Total Mass	Rated Tensile Strength	Max.D.C. Resistance at 20℃
Code Name	KCMIL or AWG	Cross Section of Aluminum	No.of Wires	Dia.of Wires	Dia.of Conductor	Total Mass	Rated Tensile Strength	Max.D.C. Resistance at 20℃
		mm²	-	mm	mm	kg/km	kN	Ω/km
Anemone	874.5	443.12	37	3.90	27.30	1223	72.9	0.06509
Cockscomb	900	456.04	37	3.96	27.72	1259	75.2	0.06324
	927.2	469.82	37	4.02	28.14	1297	77.5	0.06139
Magnolia	954	483.40	37	4.08	28.56	1334	79.8	0.05966
Hawkweed	1000	506.71	37	4.18	29.26	1399	83.8	0.05692
Bluebell	1033.5	523.68	37	4.25	29.75	1445	86.6	0.05507
	1100	557.38	61	3.41	30.69	1541	94.7	0.05182
Marigold	1113	563.97	61	3.43	30.87	1559	95.8	0.05121
Hawthorn	1192.5	604.25	61	3.55	31.95	1670	103	0.04780
	1200	608.05	61	3.56	32.04	1681	103	0.04750
Narcissus	1272	644.54	61	3.67	33.03	1782	110	0.04481
	1300	658.72	61	3.71	33.39	1821	112	0.04385
Columbine	1351.5	684.82	61	3.78	34.02	1893	113	0.04218
	1400	709.39	61	3.85	34.65	1961	117	0.04072
Carnation	1431	725.10	61	3.89	35.01	2004	120	0.03983
	1500	760.07	61	3.98	35.82	2101	125	0.03800
Gladiolus	1510.5	762.72	61	3.99	35.91	2110	123	0.03790
Coreopsis	1590	805.67	61	4.10	36.90	2227	133	0.03585
	1600	810.74	61	4.11	36.99	2241	134	0.03563
	1700	861.41	61	4.24	38.16	2381	142	0.03353
	1800	912.08	91	3.57	39.27	2524	155	0.03170
Cowslip	2000	1013.42	91	3.77	41.47	2804	168	0.02853
Sagebrush	2250	1140.10	91	3.99	43.89	3155	188	0.02536
	2435.6	1234.14	91	4.16	45.76	3415	204	0.02343
Lupine	2500	1266.78	91	4.21	46.31	3505	209	0.02283
Bitterroo	2750	1393.45	91	4.42	48.62	3856	230	0.02075
	3000	1520.13	91	4.61	50.71	4207	251	0.01902
	3007.7	1524.03	91	4.62	50.82	4217	252	0.01897
	3500	1773.49	91	4.98	54.78	4908	292	0.01630
	3640	1844.42	91	5.08	55.88	5104	304	0.01568

AAC Conductor with DIN 48201 standard

Code Number	Calculated Cross Section	No./Dia.of Stranding Wire	Overall Diameter	Linear Mass	Calculated Breaking Load	Max.D.C. Resistance at 20℃
Code Number	Calculated Cross Section	No./Dia.of Stranding Wire	Overall Diameter	Linear Mass	Calculated Breaking Load	Max.D.C. Resistance at 20℃
mm²	mm²	mm	mm	kg/km	daN	Ω/km
16	15.89	7/1.70	5.1	44	290	1.8018
25	24.25	7/2.10	6.3	67	425	1.1808
35	34.36	7/2.50	7.5	94	585	0.8332
50	49.48	7/3.00	9.0	135	810	0.5786
50	48.36	19/1.80	9.0	133	860	0.5950
70	65.82	19/2.10	10.5	181	1150	0.4371
95	93.27	19/2.50	12.5	256	1595	0.3084
120	117.00	19/2.80	14.0	322	1910	0.2459
150	147.10	37/2.25	15.2	406	2570	0.1960
185	181.60	37/2.50	17.5	501	3105	0.1587
240	242.54	61/2.25	20.2	670	4015	0.1191
300	299.43	61/2.50	22.5	827	4850	0.0965
400	400.14	61/2.89	26.0	1105	6190	0.0722
500	499.83	61/3.23	29.1	1381	7600	0.0578
625	626.20	91/2.96	32.6	1733	9690	0.04625
800	802.10	91/3.35	36.8	2219	12055	0.0361
1000	999.71	91/3.74	41.1	2766	14845	0.0290

AAC Conductor with IEC 61089 standard

Cross Section	Number of Stranding Wires	Diameter		Linear Mass	Rated Strength	Max.D.C. Resistance at 20℃
Cross Section	Number of Stranding Wires	Wires	Conductor	Linear Mass	Rated Strength	Max.D.C. Resistance at 20℃
mm2	-	mm	mm	kg/km	kN	Ω/km
10	7	1.35	4.05	27.4	1.95	2.8633
16	7	1.71	5.12	43.8	3.04	1.7896
25	7	2.13	6.40	68.4	4.50	1.1453
40	7	2.70	8.09	109.4	6.80	0.7158
63	7	3.39	10.2	172.3	10.39	0.4545
100	19	2.59	12.9	274.8	17.00	0.2877
125	19	2.89	14.5	343.6	21.25	0.2302
160	19	3.27	16.4	439.8	26.40	0.1798
200	19	3.66	18.3	549.7	32.00	0.1439
250	19	4.09	20.5	687.1	40.00	0.1151
315	37	3.29	23.0	867.9	51.97	0.0916
400	37	3.71	26.0	1102.0	64.00	0.0721
450	37	3.94	27.5	1239.8	72.00	0.0641
500	37	4.15	29.0	1377.6	80.00	0.0577
560	37	4.39	30.7	1542.9	89.60	0.0515
630	61	3.63	32.6	1738.3	100.08	0.0458
710	61	3.85	34.6	1959.1	113.60	0.0407
800	61	4.09	36.8	2207.4	128.00	0.0361
900	61	4.33	39.0	2483.3	144.00	0.0321
1000	61	4.57	41.1	2759.2	160.00	0.0289
1120	91	3.96	43.5	3093.5	179.20	0.0258
1250	91	4.18	46.0	3452.6	200.00	0.0231
1400	91	4.43	48.7	3866.9	224.00	0.0207
1500	91	4.58	50.4	4143.1	240.00	0.0193

►High Quality Assurance

►Advantages

1, There is a professional design engineer team, before manufacturing, all of the product drawing will be approved by CSBTS (State Bureau of Quality Technical Supervision), and then the cable could be produced only if qualified.

2, To ensure the raw materials quality, all the copper are special-used for cable with the Inspection Certificates. The raw material is inspected when entering factory, and only the qualified material could be put in storage and used for production.

3, To ensure the product quality, there is a professional high level quality laboratory, most of the key technology date will be checked by high precision instrument

4, To ensure no problems before delivery, all the raw materials and cables are supervised and inspected again by the experts of inspection institution for inspection institution for cable. we could offer the international quality certification of ISO9001 and CE, and the inspection report of SGS, BV, etc, Quality Certificates.

►Company Overview

Founded in 1988, Henan Guowang (State-Grid) Cable Co., Ltd. is located in Xinzheng New Technology Industrial Zone, covering an area of 40,000 square meters and has own modern production workshops, hundreds of professional and technical employees, owning unique geographic location and optimum investment environment. Guowang focuses on the production and innovation of cables, our main products include: Aluminum series, Aerial insulated series, Low voltage power cable series, High voltage power cable and Rubber cable. We are obtaining vigorous development with an amazing speed in China and also becoming a very influential leader in cable area step by step.influential leader in cable area step by step.
