XLPE Insulated Power Cables with Rated Voltages 0.6/1kV

Number of cores and Nominal cross area (mm2): 2*2.5
Calculated weight (kg/km): 10.6
Calculated external diameter (mm): Copper core 136
Calculated weight (kg/km): 13.8
Calculated external diameter (mm): Copper core 281

We're here to help:

Easy ways to get the answers you need.

(※ Click this button to inquiry)

share with :

Specifications
Technical Data
Inquiry

■ Specifications

►Application

Low Voltage XLPE Insulated power cable(XLPE cable) is used to transmit and distribute power in power transmission and distribution system of 35kV or lower. It is generally applied to the fields including power, construction, mines, metallurgy, petrochemical industry and communication in complete replace of oil immersed paper insulated power cable.

XLPE insulated power cable has a number of advantages over paper insulated and PVC insulated cable. XLPE cable has electric strength, high-ageing resisting, environmental stress resisting anti-
chemical corrosion, and it is simple construction, using convenient and higher operating of long term temperature. It can be laid with no drop restriction.

►Features
1. The highest allowed operating temperature of conductor for long-term working is 90 degrees.

2. In short circuit (Max long term is no more than 5 seconds). The highest temperature for conductor is no more than 250 degrees.

3. The cable is laid without horizontal drop limit. The environment temperature should be no lower than 0 when lay. Otherwise it should be preheated.

4. Excellent electrical performance, resistance to chemical corrosion.5. They can stand advisable traction when laid.They can stand traction from outside. Left low smoke halogen-free after burned. Retard the burning of the cable.

►Standard
1、IEC, BS, VDE, AS/NZS, ICEA, JIS and so on.

2、Only the halogen free cables shall be generally produced complied with IEC61034 and 60754.

3、Design & manufacture special power cable according to customer’s special request.

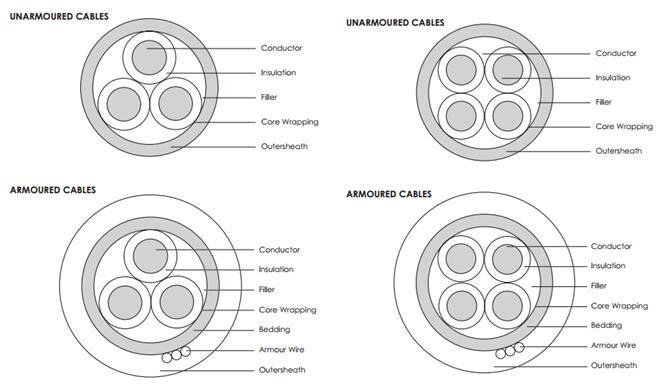

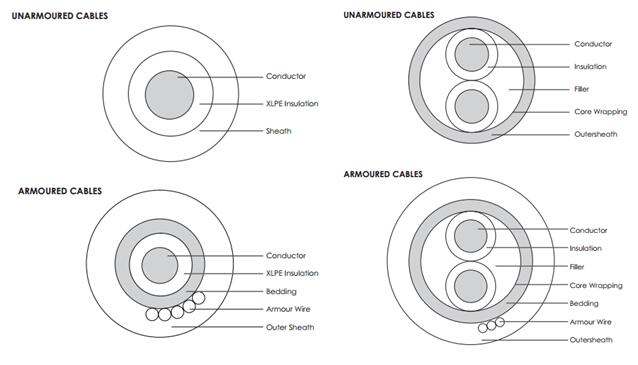

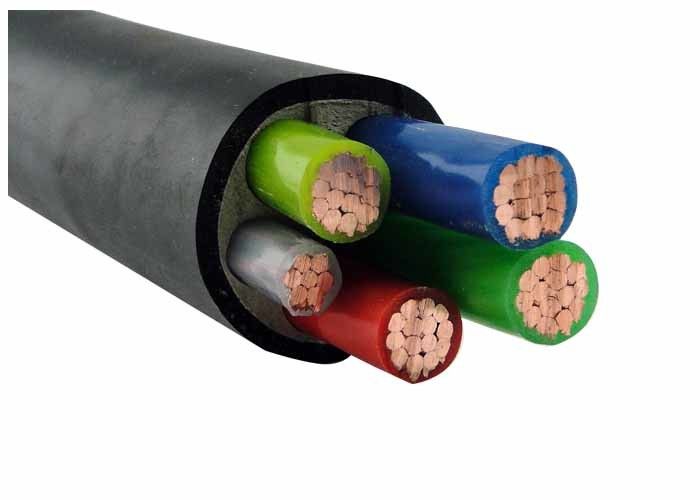

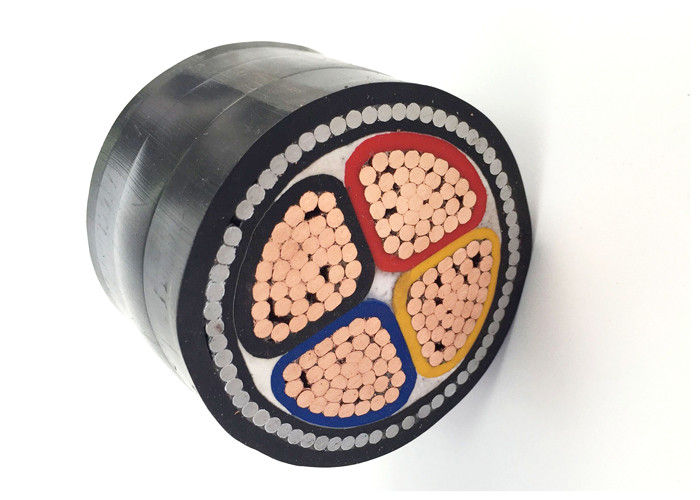

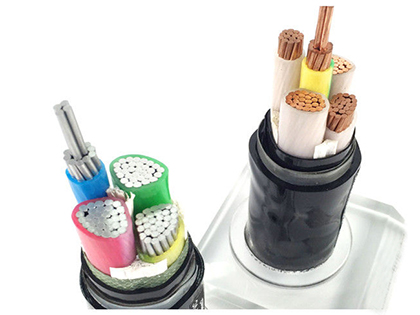

►Construction
Conductor: Copper or Aluminum

Conductor Shape: Circular Stranded or Compacted Circular Stranded

Appearance Shape: Circular

Insulation: XLPE

Armoured Type: STA(Steel Tape Armoured), SWA(Steel Wire Armoured), AWA(Aluminum Wire Armoured)

Sheath Material: PVC or Polyethylene

■ Technical Data

IEC60502 Standard

1) 0.6/1kV, Single Core, Cu or Al/XLPE/PVC Power Cable;

　　 0.6/1kV, Single Core, Cu or Al/XLPE/PVC/AWA/PVC Power Cable;

Nominal Cross Section	Approx. Overall Diameter of Conductor	Nominal Thickness of XLPE Insulation	Nominal Thickness of PVC Inner Sheath	Diameter of Al Wires	Nominal Thickness of PVC Outer Sheath		Approx.Overall Diameter		Approx. Weight
			Nominal Thickness of PVC Inner Sheath	Diameter of Al Wires	Nominal Thickness of PVC Outer Sheath		Approx.Overall Diameter		Cu Conductor		Al Conductor
			AWA	AWA	UnAr	AWA	UnAr	AWA	UnAr	AWA	UnAr	AWA
mm2	mm	mm	mm	mm	mm	mm	mm	mm	kg/km	kg/km	kg/km	kg/km
1.5	1.6	0.7	—	—	1.4	—	5.7	—	44	—	—	—
2.5	2.0	0.7	—	—	1.4	—	6.2	—	57	—	—	—
4	2.6	0.7	—	—	1.4	—	6.7	—	74	—	—	—
6	3.1	0.7	—	—	1.4	—	7.3	—	96	—	—	—
10	3.8	0.7	1.0	0.8	1.4	1.4	7.9	12.4	134	235	74	175
16	4.8	0.7	1.0	0.8	1.4	1.4	8.9	13.4	196	307	99	209
25	6.0	0.9	1.0	0.8	1.4	1.4	10.6	15.1	289	417	139	267
35	7.1	0.9	1.0	0.8	1.4	1.4	11.7	16.2	382	522	172	309
50	8.4	1.0	1.0	1.25	1.4	1.5	13.2	18.7	503	710	220	427
70	10.0	1.1	1.0	1.25	1.4	1.5	15.0	20.5	702	936	293	522
95	11.7	1.1	1.0	1.25	1.5	1.5	16.8	22.4	950	1209	384	638
120	13.3	1.2	1.0	1.6	1.5	1.6	18.6	25.1	1186	1531	469	806
150	14.5	1.4	1.0	1.6	1.5	1.6	20.4	26.7	1458	1820	567	923
185	16.4	1.6	1.0	1.6	1.5	1.7	22.7	29.2	1810	2219	698	1105
240	18.7	1.7	1.0	1.6	1.6	1.8	25.4	31.9	2348	2802	889	1335
300	20.4	1.8	1.0	1.6	1.7	1.8	27.4	33.7	2917	3393	1091	1568
400	23.2	2.0	1.2	2.0	1.8	2.0	30.9	38.5	3713	4377	1379	2043
500	26.4	2.2	1.2	2.0	1.9	2.1	34.7	42.3	4770	5512	1767	2510
630	30.0	2.4	1.2	2.0	2.1	2.2	39.1	46.5	6105	6914	2248	3058
800	34.0	2.6	1.4	2.5	2.2	2.4	43.6	52.6	7893	9008	2867	3981
1000	41.4	2.8	1.4	2.5	2.3	2.5	51.6	60.8	10189	11524	3690	5025
Note: 1.5mm2 to 6mm2 are normal round stranded conductor, 10mm2 to 800mm2 are compact round condctor.
1000m2 should be compact round segments conductor.
UnAr: Unarmoured/AWA: Aluminum Wire Armored
Only the halogen free cables shall be generally complied with IEC61034 and 60754.

(2) 0.6/ 1kV ,Two Cores, Cu or Al/XLPE/PVC Power Cable;

　　0.6/ 1kV ,Two Cores, Cu or Al/XLPE/PVC/STA/PVC Power Cable;

　　 0.6/ 1kV ,Two Cores, Cu or Al/XLPE/PVC/SWA/PVC Power Cable;

Nominal Cross Section	Approx. Overall Diameter of Conductor	Nominal Thickness of XLPE Insulation	Nominal Thickness of PVC Inner Sheath		Thickness of Steel Tape or Diameter of Steel Wire		Thickness of PVC Outer Sheath			Approx.Overall Diameter			Approx. Weight
			Nominal Thickness of PVC Inner Sheath		Thickness of Steel Tape or Diameter of Steel Wire		Thickness of PVC Outer Sheath			Approx.Overall Diameter			Cu Conductor			Al Conductor
			STA	SWA	STA	SWA	UnAr	STA	SWA	UnAr	STA	SWA	UnAr	STA	SWA	UnAr	STA	SWA
mm2	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	kg/km	kg/km	kg/km	kg/km	kg/km	kg/km
1.5	1.6	0.7	1.2	1.0	0.2	0.8	1.7	1.5	1.7	10.2	13.0	14.7	110	227	325	—	—	—
2.5	2.0	0.7	1.2	1.0	0.2	0.8	1.7	1.5	1.7	11.2	14.0	15.7	142	270	378	—	—	—
4	2.6	0.7	1.2	1.0	0.2	0.8	1.7	1.5	1.7	12.2	15.0	16.7	181	321	438	—	—	—
6	3.1	0.7	1.2	1.0	0.2	0.8	1.7	1.5	1.7	13.4	16.2	17.9	233	386	516	—	—	—
10	3.8	0.7	1.2	1.0	0.2	1.3	1.7	1.5	1.7	14.8	17.6	20.2	315	483	763	194	363	643
16	4.8	0.7	1.2	1.0	0.2	1.3	1.7	1.5	1.7	16.9	19.6	22.3	455	646	963	259	450	767
25	6.0	0.9	1.2	1.0	0.2	1.6	1.7	1.5	1.7	20.2	23.0	26.3	646	892	1413	363	591	1112
35	7.1	0.9	1.2	1.0	0.2	1.6	1.7	1.5	1.7	22.5	25.2	28.6	857	1110	1682	434	683	1242
50	8.4	1.0	1.2	1.0	0.2	1.6	1.7	1.5	1.7	25.6	28.3	31.7	1123	1411	2061	555	838	1474
70	10.0	1.1	1.2	1.0	0.2	1.6	1.7	1.6	1.9	22.7	25.6	29.1	1427	1692	2295	591	836	1382
95	11.7	1.1	1.2	1.2	0.2	2.0	1.9	1.7	2.0	25.8	28.6	33.3	1935	2222	3132	782	1050	1914
120	13.3	1.2	1.2	1.2	0.5	2.0	2.0	1.9	2.1	29.2	33.6	36.7	2431	3072	3777	971	1573	2226
150	14.5	1.4	1.3	1.2	0.5	2.0	2.1	2.0	2.2	31.9	36.5	39.3	2984	3696	4450	1171	1845	2545
185	16.4	1.6	1.3	1.4	0.5	2.5	2.2	2.1	2.4	36.5	41.2	45.4	3721	4545	5840	1461	2246	3442
240	18.7	1.7	1.4	1.4	0.5	2.5	2.4	2.2	2.5	41.3	46.0	50.3	4841	5770	7190	1924	2852	4272
300	20.4	1.8	1.5	1.5	0.5	2.5	2.5	2.4	2.6	44.7	49.6	53.8	6023	7041	8575	2363	3381	4915
1.5mm2 to 6mm2 are normal round stranded conductor, 10mm2 to 50mm2 are compact round condctor.
Above 70m2 are compact semicircle conductor.
UnAr: Unarmoured/STA: Double Steel Tape Armoured/SWA: Galvanized Steel Wire Armoured
Only the halogen free cables shall be generally complied with IEC61034 and 60754.

(3) 0.6/ 1kV ,Three Cores,,Cu or Al/XLPE/PVC Power Cable;

　　 0.6/ 1kV ,Three Cores,,Cu or Al/XLPE/PVC/STA/PVC Power Cable;

　　 0.6/ 1kV ,Three Cores,Cu or Al/XLPE/PVC/SWA/PVC Power Cable;

Nominal Cross Section	Approx. Overall Diameter of Conductor	Nominal Thickness of XLPE Insulation	Nominal Thickness of PVC Inner Sheath		Thickness of Steel Tape or Diameter of Steel Wire		Thickness of PVC Outer Sheath			Approx.Overall Diameter			Approx. Weight
			Nominal Thickness of PVC Inner Sheath		Thickness of Steel Tape or Diameter of Steel Wire		Thickness of PVC Outer Sheath			Approx.Overall Diameter			Cu Conductor			Al Conductor
			STA	SWA	STA	SWA	UnAr	STA	SWA	UnAr	STA	SWA	UnAr	STA	SWA	UnAr	STA	SWA
mm2	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	kg/km	kg/km	kg/km	kg/km	kg/km	kg/km
1.5	1.6	0.7	1.2	1.0	0.2	0.8	1.7	1.5	1.7	10.7	13.5	15.2	130	253	355	—	—	—
2.5	2.0	0.7	1.2	1.0	0.2	0.8	1.7	1.5	1.7	11.7	14.5	16.2	173	308	420	—	—	—
4	2.6	0.7	1.2	1.0	0.2	0.8	1.7	1.5	1.7	12.9	15.7	17.4	227	374	500	—	—	—
6	3.1	0.7	1.2	1.0	0.2	0.8	1.7	1.5	1.7	14.1	16.9	18.6	297	458	596	—	—	—
10	3.8	0.7	1.2	1.0	0.2	1.25	1.7	1.5	1.7	15.7	18.4	21.1	413	591	886	236	414	709
16	4.8	0.7	1.2	1.0	0.2	1.25	1.7	1.5	1.7	17.9	20.7	23.3	609	811	1142	314	517	847
25	6.0	0.9	1.2	1.0	0.2	1.6	1.7	1.5	1.7	21.5	24.3	27.6	903	1145	1691	451	694	1240
35	7.1	0.9	1.2	1.0	0.2	1.6	1.7	1.5	1.7	23.9	26.7	30.0	1187	1456	2068	550	814	1413
50	8.4	1.0	1.2	1.0	0.2	1.6	1.7	1.6	1.8	27.3	30.2	33.6	1563	1881	2571	712	1025	1701
70	10.0	1.1	1.2	1.2	0.2	2.0	1.8	1.7	1.9	26.4	29.4	33.9	2097	2403	3321	849	1133	1981
95	11.7	1.1	1.2	1.2	0.5	2.0	1.9	2.0	2.2	29.8	34.6	37.6	2834	3517	4238	1111	1751	2420
120	13.3	1.2	1.3	1.4	0.5	2.5	2.0	2.0	2.3	33.2	38.2	42.4	3560	4332	5510	1377	2105	3226
150	14.5	1.4	1.3	1.4	0.5	2.5	2.2	2.0	2.4	37.9	42.5	46.9	4406	5247	6577	1693	2492	3762
185	16.4	1.6	1.4	1.4	0.5	2.5	2.3	2.2	2.5	42.9	47.8	52.1	5491	6476	7960	2109	3050	4473
240	18.7	1.7	1.5	1.5	0.5	2.5	2.4	2.4	2.6	48.0	53.1	57.4	7144	8261	9914	2707	3779	5368
300	20.4	1.8	1.5	1.5	0.5	2.5	2.6	2.5	2.8	52.5	57.5	61.8	8903	10119	11914	3337	4508	6235
1.5mm2 to 6mm2 are normal round stranded conductor, 10mm2 to 50mm2 are compact round conductor.
Above 70m2 are compact semicircle conductor.
UnAr: Unarmoured/STA: Double Steel Tape Armoured/SWA: Galvanized Steel Wire Armoured
Only the halogen free cables shall be generally complied with IEC61034 and 60754.

(4) 0.6/ 1kV ,3C+E Cores, Cu or Al/XLPE/PVC Power Cable;
0.6/ 1kV ,3C+E Cores, Cu or Al/XLPE/PVC/STA/PVC Power Cable;
0.6/ 1kV ,3C+E Cores, Cu or Al/XLPE/PVC/SWA/PVC Power Cable;

Nominal Cross Section	Approx. Overall Diameter of Conductor	Nominal Thickness of XLPE Insulation	Nominal Cross Section of Earth Conductor	Thickness of PVC Inner Sheath		Thickness of Steel Tape or Diameter of Steel Wire		Thickness of PVC Outer Sheath			Approx.Overall Diameter			Approx. Weight Cable
				Thickness of PVC Inner Sheath		Thickness of Steel Tape or Diameter of Steel Wire		Thickness of PVC Outer Sheath			Approx.Overall Diameter			Cu Conductor			Al Conductor
				STA	SWA	STA	SWA	UnAr	STA	SWA	UnAr	STA	SWA	kg/km	kg/km	kg/km	kg/km	kg/km	kg/km
mm2	mm	mm	mm2	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm
1.5	1.6	0.7	1.5	1.2	1.0	0.2	0.8	1.7	1.5	1.7	11.5	14.3	16.0	156	288	398	—	—	—
2.5	2.0	0.7	2.5	1.2	1.0	0.2	0.8	1.7	1.5	1.7	12.7	15.4	17.2	211	355	478	—	—	—
4	2.6	0.7	4	1.2	1.0	0.2	1.25	1.7	1.5	1.7	13.9	16.7	19.3	279	438	704	—	—	—
6	3.1	0.7	6	1.2	1.0	0.2	1.25	1.7	1.5	1.7	15.4	18.1	20.8	370	544	831	—	—	—
10	3.8	0.7	10	1.2	1.0	0.2	1.25	1.7	1.5	1.7	17.1	19.8	22.5	527	720	1036	286	479	795
16	4.8	0.7	16	1.2	1.0	0.2	1.6	1.7	1.5	1.7	19.5	22.3	25.6	778	999	1509	386	607	1116
25	6.0	0.9	16	1.2	1.0	0.2	1.6	1.7	1.5	1.7	22.6	25.4	28.7	1064	1318	1890	514	769	1340
35	7.1	0.9	16	1.2	1.0	0.2	1.6	1.7	1.5	1.7	24.6	27.4	30.7	1340	1617	2241	610	883	1509
50	8.4	1.0	25	1.2	1.0	0.2	1.6	1.7	1.6	1.8	28.4	31.4	34.7	1808	2139	2870	807	1134	1851
70	10.0	1.1	35	1.2	1.2	0.2	2.0	1.8	1.7	2.0	29.7	32.6	37.3	2446	2789	3831	988	1309	2280
95	11.7	1.1	50	1.2	1.2	0.5	2.0	2.0	1.9	2.1	33.7	38.1	41.1	3313	4049	4865	1307	2000	2764
120	13.3	1.2	70	1.3	1.2	0.5	2.0	2.1	2.0	2.3	36.3	40.9	43.9	4223	5033	5913	1631	2396	3223
150	14.5	1.4	70	1.3	1.4	0.5	2.5	2.2	2.1	2.4	41.3	46.0	50.2	5061	5993	7415	1940	2826	4190
185	16.4	1.6	95	1.4	1.4	0.5	2.5	2.4	2.2	2.5	46.6	51.4	55.6	6400	7446	9076	2453	3454	4983
240	18.7	1.7	120	1.5	1.5	0.5	2.5	2.5	2.4	2.7	52.4	57.3	61.8	8291	9484	11337	3137	4284	6032
300	20.4	1.8	150	1.5	1.5	0.5	2.5	2.7	2.6	2.8	58.0	63.0	67.1	10322	11659	13632	3864	5155	7058
1.5mm2 to 6mm2 are normal round stranded conductor, 10mm2 to 50mm2 are compact round conductor.
Above 70m2 are compact semicircle conductor.
UnAr: Unarmoured/STA: Double Steel Tape Armoured/SWA: Galvanized Steel Wire Armoured
Only the halogen free cables shall be generally complied with IEC61034 and 60754.

(5) 0.6/ 1kV ,Four Cores, Cu or Al/XLPE/PVC Power Cable;
　　0.6/ 1kV ,Four Cores, Cu or Al/XLPE/PVC/STA/PVC Power Cable;
0.6/ 1kV ,Four Cores, Cu or Al/XLPE/PVC/SWA/PVC Power Cable;

Nominal Cross Section	Approx. Overall Diameter of Conductor	Nominal Thickness of XLPE Insulation	Nominal Thickness of PVC Inner Sheath		Thickness of Steel Tape or Diameter of Steel Wire		Thickness of PVC Outer Sheath			Approx.Overall Diameter			Approx. Weight Cable
			Nominal Thickness of PVC Inner Sheath		Thickness of Steel Tape or Diameter of Steel Wire		Thickness of PVC Outer Sheath			Approx.Overall Diameter			Cu Conductor			Al Conductor
			STA	SWA	STA	SWA	UnAr	STA	SWA	UnAr	STA	SWA	kg/km	kg/km	kg/km	kg/km	kg/km	kg/km
mm2	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm
1.5	1.6	0.7	1.2	1.0	0.2	0.8	1.7	1.5	1.7	11.5	14.3	16.0	156	288	398	—	—	—
2.5	2.0	0.7	1.2	1.0	0.2	0.8	1.7	1.5	1.7	12.7	15.4	17.2	211	355	478	—	—	—
4	2.6	0.7	1.2	1.0	0.2	1.25	1.7	1.5	1.7	13.9	16.7	19.3	279	438	704	—	—	—
6	3.1	0.7	1.2	1.0	0.2	1.25	1.7	1.5	1.7	15.4	18.1	20.8	370	544	831	—	—	—
10	3.8	0.7	1.2	1.0	0.2	1.25	1.7	1.5	1.7	17.1	19.8	22.5	527	720	1036	286	479	795
16	4.8	0.7	1.2	1.0	0.2	1.6	1.7	1.5	1.7	19.5	22.3	25.6	778	999	1509	386	607	1116
25	6.0	0.9	1.2	1.0	0.2	1.6	1.7	1.5	1.7	23.6	26.4	29.7	1161	1427	2025	559	825	1423
35	7.1	0.9	1.2	1.0	0.2	1.6	1.7	1.5	1.8	26.3	29.1	32.6	1533	1828	2519	690	981	1658
50	8.4	1.0	1.2	1.0	0.2	2.0	1.7	1.6	1.9	30.1	33.0	37.3	2029	2379	3410	890	1235	2243
70	10.0	1.1	1.2	1.2	0.5	2.0	1.8	1.7	2.1	30.7	35.2	38.5	2764	3443	4222	1104	1739	2467
95	11.7	1.1	1.2	1.2	0.5	2.0	1.9	2.0	2.2	35.3	40.1	43.1	3746	4551	5417	1454	2212	3026
120	13.3	1.2	1.3	1.4	0.5	2.5	2.0	2.0	2.4	38.0	43.0	47.4	4697	5578	6942	1790	2624	3890
150	14.5	1.4	1.3	1.4	0.5	2.5	2.2	2.0	2.4	43.8	48.4	52.9	5816	6785	8368	2203	3126	4609
185	16.4	1.6	1.4	1.4	0.5	2.5	2.3	2.2	2.6	48.2	53.1	57.5	7239	8342	10050	2734	3791	5395
240	18.7	1.7	1.5	1.5	0.5	2.5	2.4	2.4	2.8	53.9	59.0	63.6	9424	10676	12612	3514	4718	6545
300	20.4	1.8	1.5	1.5	0.5	2.5	2.5	2.5	3.0	61.5	66.6	71.2	11782	13205	15361	4366	5742	7824
1.5mm2 to 6mm2 are normal round stranded conductor, 10mm2 to 50mm2 are compact round conductor.
Above 70m2 are compact semicircle conductor.
UnAr: Unarmoured/STA: Double Steel Tape Armoured/SWA: Galvanized Steel Wire Armoured
Only the halogen free cables shall be generally complied with IEC61034 and 60754.

(6) 0.6/ 1kV ,4C+E Cores, Cu or Al/XLPE/PVC Power Cable;
0.6/ 1kV ,4C+E Cores, Cu or Al/XLPE/PVC/STA/PVC Power Cable;
0.6/ 1kV ,4C+E Cores, Cu or Al/XLPE/PVC/SWA/PVC Power Cable;

Nominal Cross Section	Approx. Overall Diameter of Conductor	Nominal Thickness of XLPE Insulation	Nominal Cross Section of Earth Conductor	Thickness of PVC Inner Sheath		Thickness of Steel Tape or Diameter of Steel Wire		Thickness of PVC Outer Sheath			Approx.Overall Diameter			Approx. Weight Cable
				Thickness of PVC Inner Sheath		Thickness of Steel Tape or Diameter of Steel Wire		Thickness of PVC Outer Sheath			Approx.Overall Diameter			Cu Conductor			Al Conductor
				STA	SWA	STA	SWA	UnAr	STA	SWA	UnAr	STA	SWA	UnAr	STA	SWA	UnAr	STA	SWA
mm2	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	kg/km	kg/km	kg/km	kg/km	kg/km	kg/km
1.5	1.6	0.7	1.5	1.2	1.0	0.2	0.8	1.7	1.5	1.7	12.3	15.1	16.8	182	324	444	—	—	—
2.5	2.0	0.7	2.5	1.2	1.0	0.2	0.8	1.7	1.5	1.7	13.7	16.4	18.2	249	404	537	—	—	—
4	2.6	0.7	4	1.2	1.0	0.2	1.25	1.7	1.5	1.7	15.1	17.9	20.5	334	506	784	—	—	—
6	3.1	0.7	6	1.2	1.0	0.2	1.25	1.7	1.5	1.7	16.7	19.5	22.1	446	635	944	—	—	—
10	3.8	0.7	10	1.2	1.0	0.2	1.25	1.7	1.5	1.7	18.6	21.3	24.0	636	846	1192	335	545	891
16	4.8	0.7	16	1.2	1.0	0.2	1.6	1.7	1.5	1.7	21.3	24.1	27.4	953	1194	1741	463	704	1251
25	6.0	0.9	16	1.2	1.0	0.2	1.6	1.7	1.5	1.7	24.9	27.7	31.0	1337	1618	2255	621	901	1539
35	7.1	0.9	16	1.2	1.0	0.2	1.6	1.7	1.6	1.8	27.4	30.4	33.7	1709	2028	2733	753	1068	1759
50	8.4	1.0	25	1.2	1.2	0.2	2.0	1.8	1.7	2.0	31.8	34.8	39.4	2313	2681	3808	1009	1372	2476
70	10.0	1.1	35	1.2	1.2	0.5	2.0	2.0	1.9	2.1	33.2	37.6	40.7	3129	3857	4653	1340	2127	3000
95	11.7	1.1	50	1.3	1.2	0.5	2.0	2.1	2.0	2.3	37.6	42.2	45.2	4226	5064	5975	1755	2658	3616
120	13.3	1.2	70	1.4	1.4	0.5	2.5	2.3	2.1	2.4	42.3	47.0	51.1	5402	6356	7786	2244	3291	4882
150	14.5	1.4	70	1.4	1.4	0.5	2.5	2.4	2.2	2.5	45.7	50.4	54.7	6489	7515	9080	2641	3779	5532
185	16.4	1.6	95	1.5	1.5	0.5	2.5	2.5	2.4	2.7	50.6	55.5	59.9	8171	9323	11084	3329	4625	6592
240	18.7	1.7	120	1.6	1.5	0.5	2.5	2.7	2.6	2.9	57.0	62.2	66.3	10599	11940	13888	4233	5738	7873
300	20.4	1.8	150	1.7	1.5	0.5	3.15	2.9	2.8	3.1	63.3	68.9	74.0	13205	14742	17671	5200	6914	10136
1.5mm2 to 6mm2 are normal round stranded conductor, 10mm2 to 50mm2 are compact round conductor.
Above 70m2 are compact semicircle conductor.
UnAr: Unarmoured/STA: Double Steel Tape Armoured/SWA: Galvanized Steel Wire Armoured
Only the halogen free cables shall be generally complied with IEC61034 and 60754.

(7) 0.6/ 1kV ,Five Cores, Cu or Al/XLPE/PVC Power Cable;
0.6/ 1kV ,Five Cores, Cu or Al/XLPE/PVC/STA/PVC Power Cable;
0.6/ 1kV ,Five Cores, Cu or Al/XLPE/PVC/SWA/PVC Power Cable;

Nominal Cross Section	Approx. Overall Diameter of Conductor	Nominal Thickness of XLPE Insulation	Thickness of PVC Inner Sheath		Thickness of Steel Tape or Diameter of Steel Wire		Thickness of PVC Outer Sheath			Approx.Overall Diameter			Approx. Weight Cable
			Thickness of PVC Inner Sheath		Thickness of Steel Tape or Diameter of Steel Wire		Thickness of PVC Outer Sheath			Approx.Overall Diameter			Cu Conductor			Al Conductor
			STA	SWA	STA	SWA	UnAr	STA	SWA	UnAr	STA	SWA	UnAr	STA	SWA	UnAr	STA	SWA
mm2	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	kg/km	kg/km	kg/km	kg/km	kg/km	kg/km
1.5	1.6	0.7	1.2	1.0	0.2	0.8	1.7	1.5	1.7	12.3	15.1	16.8	182	324	444	—	—	—
2.5	2.0	0.7	1.2	1.0	0.2	0.8	1.7	1.5	1.7	13.7	16.4	18.2	249	404	537	—	—	—
4	2.6	0.7	1.2	1.0	0.2	1.25	1.7	1.5	1.7	15.1	17.9	20.5	334	506	784	—	—	—
6	3.1	0.7	1.2	1.0	0.2	1.25	1.7	1.5	1.7	16.7	19.5	22.1	446	635	944	—	—	—
10	3.8	0.7	1.2	1.0	0.2	1.25	1.7	1.5	1.7	18.6	21.3	24.0	636	846	1192	335	545	891
16	4.8	0.7	1.2	1.0	0.2	1.6	1.7	1.5	1.7	21.3	24.1	27.4	953	1194	1741	463	704	1251
25	6.0	0.9	1.2	1.0	0.2	1.6	1.7	1.5	1.7	25.8	28.6	31.9	1411	1701	2366	658	949	1614
35	7.1	0.9	1.2	1.0	0.2	1.6	1.7	1.6	1.8	28.9	31.9	35.2	1889	2226	2954	832	1163	1878
50	8.4	1.0	1.2	1.2	0.2	2.0	1.9	1.8	2.0	33.4	36.4	40.9	2498	2883	4040	1110	1489	2623
70	10.0	1.1	1.2	1.2	0.5	2.0	2.0	1.9	2.2	36.6	41.1	44.3	3470	4271	5184	1471	2296	3211
95	11.7	1.1	1.3	1.4	0.5	2.5	2.2	2.0	2.3	41.3	45.9	50.1	4706	5621	7080	1940	2883	4353
120	13.3	1.2	1.4	1.4	0.5	2.5	2.3	2.2	2.4	45.9	50.8	54.9	5910	6962	8538	2426	3533	5179
150	14.5	1.4	1.5	1.4	0.5	2.5	2.4	2.3	2.6	51.5	56.4	60.5	7299	8476	10212	2948	4178	5981
185	16.4	1.6	1.5	1.5	0.5	2.5	2.6	2.5	2.8	56.5	61.6	65.9	9097	10407	12338	3685	5084	7136
240	18.7	1.7	1.6	1.5	0.5	2.5	2.8	2.7	3.0	63.8	69.2	73.2	11840	13363	15505	4704	6322	8574
300	20.4	1.8	1.7	1.7	0.5	3.15	3.0	2.9	3.2	70.7	76.3	81.7	14765	16474	19793	5783	7591	11067
1.5mm2 to 6mm2 are normal round stranded conductor, 10mm2 to 50mm2 are compact round condctor.
Above 70m2 are compact semicircle conductor.
UnAr: Unarmoured/STA: Double Steel Tape Armoured/SWA: Galvanized Steel Wire Amoured
Only the halogen free cables shall be generally complied with IEC61034 and 60754.

(8) 0.6/ 1kV ,3C+2E Cores,,Cu or Al/XLPE/PVC Power Cable;
0.6/ 1kV ,3C+2E Cores,,Cu or Al/XLPE/PVC/STA/PVC Power Cable;
0.6/ 1kV ,3C+2E Cores,Cu or Al/XLPE/PVC/SWA/PVC Power Cable;

Nominal Cross Section	Approx. Overall Diameter of Conductor	Nominal Thickness of XLPE Insulation	Nominal Cross Section of Earth Conductor	Nominal Thickness of PVC Inner Sheath		Thickness of Steel Tape or Diameter of Steel Wire		Thickness of PVC Outer Sheath			Approx.Overall Diameter			Approx. Weight Cable
				Nominal Thickness of PVC Inner Sheath		Thickness of Steel Tape or Diameter of Steel Wire		Thickness of PVC Outer Sheath			Approx.Overall Diameter			Cu Conductor			Al Conductor
				STA	SWA	STA	SWA	UnAr	STA	SWA	UnAr	STA	SWA	UnAr	STA	SWA	UnAr	STA	SWA
mm2	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	kg/km	kg/km	kg/km	kg/km	kg/km	kg/km
1.5	1.6	0.7	1.5	1.2	1.0	0.2	0.8	1.7	1.5	1.7	12.3	15.1	16.8	182	324	444	—	—	—
2.5	2.0	0.7	2.5	1.2	1.0	0.2	0.8	1.7	1.5	1.7	13.7	16.4	18.2	249	404	537	—	—	—
4	2.6	0.7	4	1.2	1.0	0.2	1.25	1.7	1.5	1.7	15.1	17.9	20.5	334	506	784	—	—	—
6	3.1	0.7	6	1.2	1.0	0.2	1.25	1.7	1.5	1.7	16.7	19.5	22.1	446	635	944	—	—	—
10	3.8	0.7	10	1.2	1.0	0.2	1.25	1.7	1.5	1.7	18.6	21.3	24.0	636	846	1192	335	545	891
16	4.8	0.7	16	1.2	1.0	0.2	1.6	1.7	1.5	1.7	21.3	24.1	27.4	953	1194	1741	463	704	1251
25	6.0	0.9	16	1.2	1.0	0.2	1.6	1.7	1.5	1.7	24.0	26.8	30.1	1234	1505	2116	578	849	1460
35	7.1	0.9	16	1.2	1.0	0.2	1.6	1.7	1.5	1.7	25.9	28.7	32.0	1506	1797	2462	679	966	1617
50	8.4	1.0	25	1.2	1.0	0.2	1.6	1.8	1.7	1.9	30.4	33.3	36.6	2078	2429	3200	922	1269	2027
70	10.0	1.1	35	1.2	1.2	0.5	2.0	1.9	1.8	2.0	32.3	36.7	39.7	2817	3527	4307	1201	1950	2773
95	11.7	1.1	50	1.2	1.2	0.5	2.0	2.1	2.0	2.2	36.6	41.0	44.0	3813	4611	5487	1593	2436	3348
120	13.3	1.2	70	1.3	1.4	0.5	2.5	2.2	2.0	2.4	41.9	46.5	50.9	4967	5894	7365	2044	3027	4569
150	14.5	1.4	70	1.4	1.4	0.5	2.5	2.3	2.1	2.4	44.7	49.5	53.7	5764	6773	8305	2343	3418	5052
185	16.4	1.6	95	1.5	1.4	0.5	2.5	2.4	2.3	2.6	50.0	54.9	59.0	7353	8496	10216	2975	4199	6006
240	18.7	1.7	120	1.5	1.5	0.5	2.5	2.6	2.5	2.8	56.2	61.3	65.6	9461	10763	12700	3778	5171	7227
300	20.4	1.8	150	1.6	1.5	0.5	2.5	2.8	2.6	3.0	62.7	67.9	72.0	11766	13238	15382	4632	6193	8413
1.5mm2 to 6mm2 are normal round stranded conductor, 10mm2 to 50mm2 are compact round conductor.
Above 70m2 are compact semicircle conductor.
UnAr: Unarmoured/STA: Double Steel Tape Armoured/SWA: Galvanized Steel Wire Armoured
Only the halogen free cables shall be generally complied with IEC61034 and 60754.
