►Introduction

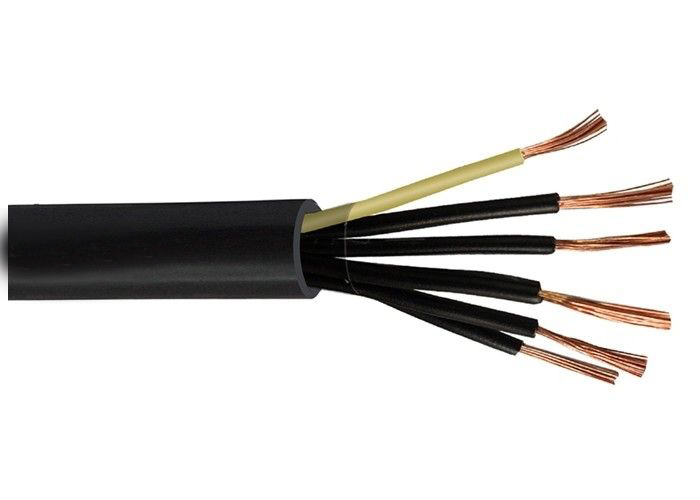

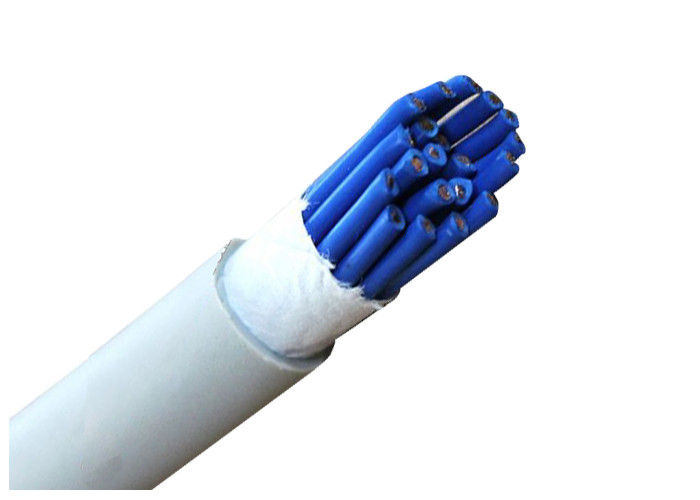

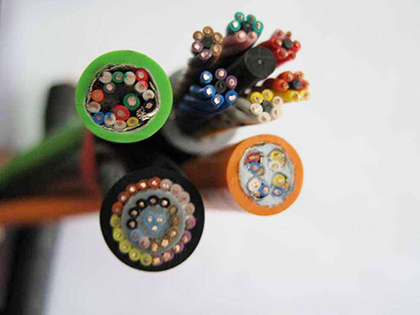

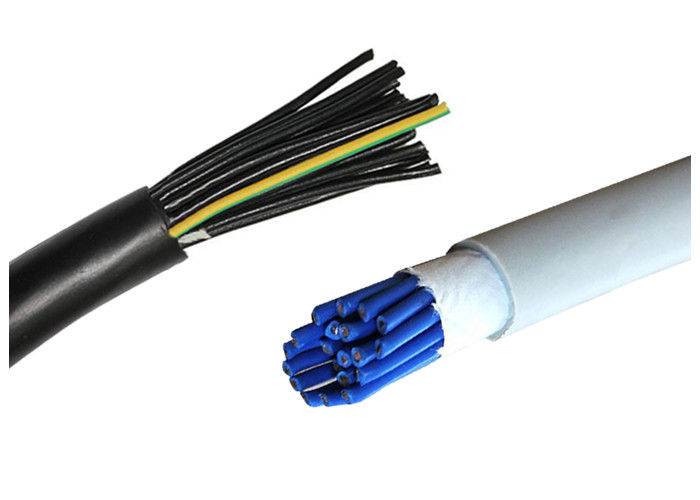

Control cable is a kind of electrical cable and its each nominal cross section is same. They are featured by insulation material to avoid the current passing through them. They are widely used in the power station and transportation. And the screened feature makes the control cable resist the errosion from the underground and increase the conductivity.
►Standard
International: IEC 60502, IEC 60228
China: GB/T 12706.1-2008 GB/T 9330-2008
Other standards such as BS,DIN and ICEA upon request
►Feature
1, Long-term service temperature of the cable conductor: 70 centigrade.
2, Rated voltage: 450/750V.
3, Cable lying temperature ≥0 cenigrade.
4, Cores: 2, 3, 4, 5, 6,7, 8, 10, 12, 14, 16, 19, 24, 27, 30, 37, 44, 48, 52, 61.
5, Sectional area:0.75~10mm2
►Application
Used as power and connecting cables in mechanical engineering for tooling machinery, control unit,
production lines, transportation equipment, conveyor and assembly lines as well as in plant construction
under the circumstance that the rated voltage is up to 450/750V AC.
►Service Conditions
1, The long-time working temperature of conductor of PVC insulated cable is 70oC
The long-time working temperature of conductor of XLPE insulated cable is 90oC
2, The temperature for laying the cables cannot be lower than 0oC.Permissible bending radius(r):unarmoured cable:r≥6D;(D: outer diameter of the cable);armoured or copper-tape screened cable:r≥12D;shielded flexible cable:r≥6D
|
CONTROL CABLE CU/PVC/PVC 450/750V 0.6/1KV BY IEC 60227 |
|||||
|
Cross Section |
Conductor Construction |
Insulation Thickness |
Sheath Thickness |
Outer Dia.Approx. |
Weight Approx |
|
2×0.75 |
1/0.97 |
0.6/0.8 |
1.2/1.8 |
7.3/9.3 |
60/94 |
|
2×0.75 |
7/0.37 |
0.6/0.8 |
1.2/1.8 |
7.6/9.6 |
63/98 |
|
2×1 |
1/1.13 |
0.6/0.8 |
1.2/1.8 |
7.7/9.7 |
68/103 |
|
2×1 |
7/0.43 |
0.6/0.8 |
1.2/1.8 |
8.0/10 |
71/108 |
|
2×1.5 |
1/1.38 |
0.7/0.8 |
1.2/1.8 |
8.6/10.2 |
87/119 |
|
2×1.5 |
7/0.52 |
0.7/0.8 |
1.2/1.8 |
8.9/10.5 |
94/124 |
|
2×2.5 |
1/1.78 |
0.7/0.8 |
1.2/1.8 |
9.8/11 |
120/148 |
|
2×2.5 |
7/0.68 |
0.7/0.8 |
1.2/1.8 |
10.3/11.5 |
127/157 |
|
2×4 |
1/2.25 |
0.8/1 |
1.2/1.8 |
10.7/12.7 |
158/205 |
|
2×4 |
7/0.85 |
0.8/1 |
1.2/1.8 |
11.3/13.3 |
166/215 |
|
2×6 |
1/2.76 |
0.8/1 |
1.2/1.8 |
11.7/13.7 |
207/258 |
|
2×6 |
7/1.04 |
0.8/1 |
1.2/1.8 |
12.4/14.4 |
216/269 |
|
2×10 |
7/1.35 |
1.0/1.0 |
1.2/1.8 |
15.7/16.3 |
353/374 |
|
3×0.75 |
1/0.97 |
0.6/0.8 |
1.2/1.8 |
7.7/9.7 |
72/109 |
|
3×0.75 |
7/0.37 |
0.6/0.8 |
1.2/1.8 |
8.0/10 |
76/114 |
|
3×1 |
1/1.13 |
0.6/0.8 |
1.2/1.8 |
8/10.1 |
83/122 |
|
3×1 |
7/0.43 |
0.6/0.8 |
1.2/1.8 |
8.4/10.4 |
87/127 |
|
3×1.5 |
1/1.38 |
0.7/0.8 |
1.2/1.8 |
9/10.6 |
109/143 |
|
3×1.5 |
7/0.52 |
0.7/0.8 |
1.2/1.8 |
9.4/11 |
113/149 |
|
3×2.5 |
1/1.78 |
0.8/0.8 |
1.2/1.8 |
10.3/11.5 |
153/183 |
|
3×2.5 |
7/0.68 |
0.8/0.8 |
1.2/1.8 |
10.8/12 |
162/193 |
|
3×4 |
1/2.25 |
0.8/1 |
1.2/1.8 |
11.3/13.4 |
206/259 |
|
3×4 |
7/0.85 |
0.8/1 |
1.2/1.8 |
11.9/14 |
215/270 |
|
3×6 |
1/2.76 |
0.8/1 |
1.2/1.8 |
13/14.5 |
292/332 |
|
3×6 |
7/1.04 |
0.8/1 |
1.2/1.8 |
13.8/15.2 |
302/344 |
|
3×10 |
7/1.35 |
1.0/1.0 |
1.2/1.8 |
16.6/17.2 |
467/490 |
|
4×0.75 |
1/0.97 |
0.6/0.8 |
1.2/1.8 |
8.2/10.4 |
87/128 |
|
4×0.75 |
7/0.37 |
0.6/0.8 |
1.2/1.8 |
8.6/10.7 |
91/134 |
|
4×1 |
1/1.13 |
0.6/0.8 |
1.2/1.8 |
8.6/10.8 |
101/144 |
|
4×1 |
7/0.43 |
0.6/0.8 |
1.2/1.8 |
9/11.2 |
105/151 |
|
4×1.5 |
1/1.38 |
0.7/0.8 |
1.2/1.8 |
9.7/11.4 |
134/171 |
|
4×1.5 |
7/0.52 |
0.7/0.8 |
1.2/1.8 |
10.1/11.8 |
139/178 |
|
4×2.5 |
1/1.78 |
0.8/0.8 |
1.2/1.8 |
11.2/12.4 |
191/223 |
|
4×2.5 |
7/0.68 |
0.8/0.8 |
1.2/1.8 |
11.8/13 |
201/235 |
|
4×4 |
1/2.25 |
0.8/1 |
1.5/1.8 |
12.9/14.5 |
277/320 |
|
4×4 |
7/0.85 |
0.8/1 |
1.5/1.8 |
13.6/15.2 |
288/333 |
|
4×6 |
1/2.76 |
0.8/1 |
1.5/1.8 |
14.1/15.7 |
368/415 |
|
4×6 |
7/1.04 |
1.0/1.0 |
1.5/1.8 |
15/16.6 |
380/429 |
|
4×10 |
7/1.35 |
1.0/1.0 |
1.5/1.8 |
18.2/18.8 |
594/619 |
|
5×0.75 |
1/0.97 |
0.6/0.8 |
1.2/1.8 |
8.9/11.1 |
102/149 |
|
5×0.75 |
7/0.37 |
0.6/0.8 |
1.2/1.8 |
9.2/11.5 |
107/156 |
|
5×1 |
1/1.13 |
0.6/0.8 |
1.2/1.8 |
9.3/11.6 |
119/168 |
|
5×1 |
7/0.43 |
0.6/0.8 |
1.2/1.8 |
9.7/12 |
125/176 |
|
5×1.5 |
1/1.38 |
0.7/0.8 |
1.2/1.8 |
10.5/12.2 |
159/201 |
|
5×1.5 |
7/0.52 |
0.7/0.8 |
1.2/1.8 |
11/12.7 |
165/209 |
|
5×2.5 |
1/1.78 |
0.8/0.8 |
1.5/1.8 |
12.7/13.3 |
247/264 |
|
5×2.5 |
7/0.68 |
0.8/0.8 |
1.5/1.8 |
13.4/14 |
260/279 |
|
5×4 |
1/2.25 |
0.8/1 |
1.5/1.8 |
14/15.7 |
334/383 |
|
5×4 |
7/0.85 |
0.8/1 |
1.5/1.8 |
14.8/16.5 |
347/399 |
|
5×6 |
1/2.76 |
0.8/1 |
1.5/1.8 |
15.4/17.1 |
447/500 |
|
5×6 |
7/1.04 |
0.8/1 |
1.5/1.8 |
16.3/18 |
461/518 |
|
5×10 |
7/1.35 |
1.0/1.0 |
1.7/1.8 |
20.3/20.5 |
743/752 |
|
6×0.75 |
1/0.97 |
0.6/0.8 |
1.2/1.8 |
9.5/11.9 |
115/166 |
|
6×0.75 |
7/0.37 |
0.6/0.8 |
1.2/1.8 |
9.9/12.3 |
120/174 |
|
6×1 |
1/1.13 |
0.6/0.8 |
1.2/1.8 |
10/12.4 |
135/188 |
|
6×1 |
7/0.43 |
0.6/0.8 |
1.2/1.8 |
10.5/12.9 |
141/197 |
|
6×1.5 |
1/1.38 |
0.7/0.8 |
1.2/1.8 |
11.3/13.1 |
181/227 |
|
6×1.5 |
7/0.52 |
0.7/0.8 |
1.2/1.8 |
11.9/13.7 |
188/236 |
|
6×2.5 |
1/1.78 |
0.8/0.8 |
1.5/1.8 |
13.7/14.3 |
282/301 |
|
6×2.5 |
7/0.68 |
0.8/0.8 |
1.5/1.8 |
14.5/15.1 |
296/317 |
|
6×4 |
1/2.25 |
0.8/1 |
1.5/1.8 |
15.2/17 |
384/438 |
|
6×4 |
7/0.85 |
0.8/1 |
1.5/1.8 |
16.1/17.9 |
397/455 |
|
6×6 |
1/2.76 |
0.8/1 |
1.5/1.8 |
16.7/18.5 |
527/589 |
|
6×6 |
7/1.04 |
0.8/1 |
1.5/1.8 |
17.8/19.6 |
544/610 |
|
6×10 |
7/1.35 |
1.0/1.0 |
1.7/1.8 |
22.2/22.4 |
879/889 |
|
7×0.75 |
1/0.97 |
0.6/0.8 |
1.2/1.8 |
9.5/1.9 |
123/176 |
|
7×0.75 |
7/0.37 |
0.6/0.8 |
1.2/1.8 |
9.9/12.3 |
129/184 |
|
7×1 |
1/1.13 |
0.6/0.8 |
1.2/1.8 |
10/12.4 |
146/200 |
|
7×1 |
7/0.43 |
0.6/0.8 |
1.2/1.8 |
10.5/12.9 |
152/209 |
|
7×1.5 |
1/1.38 |
0.7/0.8 |
1.2/1.8 |
11.3/13.1 |
198/244 |
|
7×1.5 |
7/0.52 |
0.7/0.8 |
1.2/1.8 |
11.9/13.7 |
204/253 |
|
7×2.5 |
1/1.78 |
0.8/0.8 |
1.2/1.8 |
13.7/14.3 |
308/327 |
|
7×2.5 |
7/0.68 |
0.8/0.8 |
1.2/1.8 |
14.5/15.1 |
323/343 |
|
7×4 |
1/2.25 |
0.8/1 |
1.5/1.8 |
15.2/17 |
423/480 |
|
7×4 |
7/0.85 |
0.8/1 |
1.5/1.8 |
16.1/17.9 |
437/497 |
|
7×6 |
1/2.76 |
0.8/1 |
1.5/1.8 |
16.7/18.5 |
585/649 |
|
7×6 |
7/1.04 |
0.8/1 |
1.5/1.8 |
17.8/19.6 |
602/669 |
|
7×10 |
7/1.35 |
1.0/1.0 |
1.7/1.8 |
22.2/22.4 |
975/985 |
|
8×0.75 |
1/0.97 |
0.6/0.8 |
1.2/1.8 |
10.2/12.7 |
140/198 |
|
8×0.75 |
7/0.37 |
0.6/0.8 |
1.2/1.8 |
10.6/13.1 |
147/208 |
|
8×1 |
1/1.13 |
0.6/0.8 |
1.2/1.8 |
10.713.2 |
166/227 |
|
8×1 |
7/0.43 |
0.6/0.8 |
1.2/1.8 |
11.2/13.7 |
174/237 |
|
8×1.5 |
1/1.38 |
0.7/0.8 |
1.2/1.8 |
12.8/14 |
243/277 |
|
8×1.5 |
7/0.52 |
0.7/0.8 |
1.2/1.8 |
13.4/14.6 |
251/287 |
|
8×2.5 |
1/1.78 |
0.8/0.8 |
1.5/1.8 |
14.8/15.4 |
352/372 |
|
8×2.5 |
7/0.68 |
0.8/.08 |
1.5/1.8 |
15.6/16.2 |
370/392 |
|
8×4 |
1/2.25 |
0.8/1 |
1.5/1.8 |
16.3/18.2 |
485/549 |
|
8×4 |
7/0.85 |
0.8/1 |
1.5/1.8 |
17.3/19.2 |
502/569 |
|
8×6 |
1/2.76 |
0.8/1 |
1.7/1.8 |
18.4/19.9 |
675/728 |
|
8×6 |
7/1.04 |
0.8/1 |
1.7/1.8 |
19.6/21.1 |
693/750 |
|
8×10 |
7/1.35 |
1.0/1.0 |
1.7/1.8 |
24/24.2 |
1097/1108 |
|
10×0.75 |
1/0.97 |
0.6/0.8 |
1.2/1.8 |
11.7/14.5 |
172/241 |
|
10×0.75 |
7/0.37 |
0.6/0.8 |
1.2/1.8 |
12.2/15 |
181/253 |
|
10×1 |
1/1.13 |
0.6/0.8 |
1.5/1.8 |
12.9/15.1 |
221/277 |
|
10×1 |
7/0.43 |
0.6/0.8 |
1.5/1.8 |
13.6/15.8 |
232/290 |
|
10×1.5 |
1/1.38 |
0.7/0.8 |
1.5/1.8 |
14.7/16.1 |
299/340 |
|
10×1.5 |
7/0.52 |
0.7/0.8 |
1.5/1.8 |
15.4/16.8 |
309/352 |
|
10×2.5 |
1/1.78 |
0.8/0.8 |
1.5/1.8 |
17.1/17.7 |
435/459 |
|
10×2.5 |
7/0.68 |
0.8/0.8 |
1.5/1.8 |
18.2/18.8 |
458/483 |
|
10×4 |
1/2.25 |
0.8/1 |
1.7/1.8 |
19.4/21.2 |
619/680 |
|
10×4 |
7/0.85 |
0.8/1 |
1.7/1.8 |
20.6/22.4 |
641/705 |
|
10×6 |
1/2.76 |
0.8/1 |
1.7/1.8 |
21.4/23.2 |
837/904 |
|
10×6 |
7/1.04 |
0.8/1 |
1.7/1.8 |
22.9/24.7 |
861/931 |
|
10×10 |
7/1.35 |
1.0/1.0 |
1.7/1.8 |
28.2/28.6 |
1366/1391 |
|
12×0.75 |
1/0.97 |
0.6/0.8 |
1.5/1.8 |
12.6/14.9 |
212/270 |
|
12×0.75 |
7/0.37 |
0.6/0.8 |
1.5/1.8 |
13.2/15.5 |
222/283 |
|
12×1 |
1/1.13 |
0.6/0.8 |
1.5/1.8 |
13.3/15.5 |
250/311 |
|
12×1 |
7/0.43 |
0.6/0.8 |
1.5/1.8 |
13.9/16.2 |
262/326 |
|
12×1.5 |
1/1.38 |
0.7/0.8 |
1.5/1.8 |
15.1/16.6 |
341/385 |
|
12×1.5 |
7/0.52 |
0.7/0.8 |
1.5/1.8 |
15.9/17.3 |
352/389 |
|
12×2.5 |
1/1.78 |
0.8/0.8 |
1.5/1.8 |
17.6/18.2 |
500/525 |
|
12×2.5 |
7/0.68 |
0.8/0.8 |
1.7/1.8 |
19.1/19.3 |
543/552 |
|
12×4 |
1/2.25 |
0.8/1 |
1.7/1.8 |
20/21.9 |
715/784 |
|
12×4 |
7/0.85 |
0.8/1 |
1.7/1.8 |
21.2/23.1 |
739/811 |
|
12×6 |
1/2.76 |
0.8/1 |
1.7/1.8 |
22.1/24 |
973/1048 |
|
12×6 |
7/1.04 |
0.8/1 |
1.7/1.8 |
23.6/25.5 |
998/1078 |
|
14×0.75 |
1/0.97 |
0.6/0.8 |
1.5/1.8 |
13.2/5.5 |
238/302 |
|
14×0.75 |
7/0.37 |
0.6/0.8 |
1.5/1.8 |
13.8/16.2 |
249/316 |
|
14×1 |
1/1.13 |
0.6/0.8 |
1.5/1.8 |
13.9/16.3 |
282/350 |
|
14×1 |
7/0.43 |
0.6/0.8 |
1.5/1.8 |
14.6/17 |
296/366 |
|
14×1.5 |
1/1.38 |
0.7/0.8 |
1.5/1.8 |
15.9/17.4 |
386/434 |
|
14×1.5 |
7/0.52 |
0.7/0.8 |
1.5/1.8 |
16.7/18.1 |
399/450 |
|
14×2.5 |
1/1.78 |
0.8/0.8 |
1.5/1.8 |
18.5/19.1 |
571/596 |
|
14×2.5 |
7/0.68 |
0.8/0.8 |
1.5/1.8 |
19.7/20.3 |
600/627 |
|
14×4 |
1/2.25 |
0.8/1 |
1.7/1.8 |
21/23 |
818/895 |
|
14×4 |
7/0.85 |
0.8/1 |
1.7/1.8 |
22.3/24.3 |
844/926 |
|
14×6 |
1/2.76 |
0.8/1 |
1.7/1.8 |
23.2/25.2 |
1117/1202 |
|
14×6 |
7/1.04 |
0.8/1 |
1.7/1.8 |
24.8/26.8 |
1145/1236 |
|
16×0.75 |
1/0.97 |
0.6/0.8 |
1.5/1.8 |
13.8/16.3 |
265/335 |
|
16×0.75 |
7/0.37 |
0.6/0.8 |
1.5/1.8 |
14.5/16.9 |
278/351 |
|
16×1 |
1/1.13 |
0.6/0.8 |
1.5/1.8 |
14.6/17 |
315/389 |
|
16×1 |
7/0.43 |
0.6/0.8 |
1.5/1.8 |
15.3/17.8 |
330/408 |
|
16×1.5 |
1/1.38 |
0.7/0.8 |
1.5/1.8 |
16.7/18.2 |
433/486 |
|
16×1.5 |
7/0.52 |
0.7/0.8 |
1.5/1.8 |
17.5/19.1 |
448/503 |
|
16×2.5 |
1/1.78 |
0.8/0.8 |
1.7/1.8 |
19.9/20.1 |
661/670 |
|
16×2.5 |
7/0.68 |
0.8/0.8 |
1.7/1.8 |
21.1/21.3 |
694/704 |
|
19×0.75 |
1/0.97 |
0.6/0.8 |
1.5/1.8 |
14.5/17.1 |
298/375 |
|
19×0.75 |
7/0.37 |
0.6/0.8 |
1.5/1.8 |
15.2/17.8 |
312/393 |
|
19×1 |
1/1.13 |
0.6/0.8 |
1.5/1.8 |
15.3/17.9 |
357/438 |
|
19×1 |
7/0.43 |
0.6/0.8 |
1.5/1.8 |
16.1/18.7 |
373/458 |
|
19×1.5 |
1/1.38 |
0.7/0.8 |
1.5/1.8 |
17.5/19.1 |
493/550 |
|
19×1.5 |
7/0.52 |
0.7/0.8 |
1.5/1.8 |
18.4/20 |
508/568 |
|
19×2.5 |
1/1.78 |
0.8/0.8 |
1.7/1.8 |
20.9/21.1 |
754/764 |
|
19×2.5 |
7/0.68 |
0.8/0.8 |
1.7/1.8 |
22.2/22.4 |
791/801 |
|
24×0.75 |
1/0.97 |
0.6/0.8 |
1.5/1.8 |
16.6/19.6 |
368/462 |
|
24×0.75 |
7/0.37 |
0.6/0.8 |
1.5/1.8 |
17.5/20.5 |
386/484 |
|
24×1 |
1/1.13 |
0.6/0.8 |
1.5/1.8 |
17.6/20.6 |
442/541 |
|
24×1 |
7/0.43 |
0.6/0.8 |
1.5/1.8 |
18.5/21.5 |
462/566 |
|
24×1.5 |
1/1.38 |
0.7/0.8 |
1.7/1.8 |
20.7/22.1 |
631/681 |
|
24×1.5 |
7/0.52 |
0.7/0.8 |
1.7/1.8 |
21.8/23.2 |
651/704 |
|
24×2.5 |
1/1.78 |
0.8/0.8 |
1.7/1.8 |
24.3/24.5 |
939/950 |
|
24×2.5 |
7/0.68 |
0.8/0.8 |
1.7/1.8 |
25.8/26 |
986/998 |
|
27×0.75 |
1/0.97 |
0.6/0.8 |
1.5/1.8 |
17/20 |
403/504 |
|
27×0.75 |
7/0.37 |
0.6/0.8 |
1.5/1.8 |
17.8/20.9 |
422/528 |
|
27×1 |
1/1.13 |
0.6/0.8 |
1.5/1.8 |
17.9/21 |
485/592 |
|
27×1 |
7/0.43 |
0.6/0.8 |
1.5/1.8 |
18.9/22 |
507/619 |
|
27×1.5 |
1/1.38 |
0.7/0.8 |
1.7/1.8 |
21.1/22.5 |
694/794 |
|
27×1.5 |
7/0.52 |
0.7/0.8 |
1.7/1.8 |
22.2/23.6 |
716/774 |
|
27×2.5 |
1/1.78 |
0.8/0.8 |
1.7/1.8 |
24.8/25 |
1038/4050 |
|
27×2.5 |
7/0.68 |
0.8/0.8 |
1.7/1.8 |
26.4/26.6 |
1089/1101 |
|
30×0.75 |
1/0.97 |
0.6/0.8 |
1.5/1.8 |
17.5/20.7 |
439/549 |
|
30×0.75 |
7/0.37 |
0.6/0.8 |
1.5/1.8 |
18.4/21.6 |
461/575 |
|
30×1 |
1/1.13 |
0.6/0.8 |
1.7/1.8 |
18.9/21.7 |
548/646 |
|
30×1 |
7/0.43 |
0.6/0.8 |
1.7/1.8 |
20/22.7 |
275/675 |
|
30×1.5 |
1/1.38 |
0.7/0.8 |
1.7/1.8 |
21.8/23.3 |
760/819 |
|
30×1.5 |
7/0.52 |
0.7/0.8 |
1.7/1.8 |
23/24.5 |
784/846 |
|
30×2.5 |
1/1.78 |
0.8/0.8 |
1.7/1.8 |
25.7/25.9 |
1140/1152 |
|
30×2.5 |
7/0.68 |
0.8/0.8 |
1.7/1.8 |
27.3/27.5 |
1196/1209 |
|
37×0.75 |
1/0.97 |
0.6/0.8 |
1.7/1.8 |
19.2/22.2 |
542/652 |
|
37×0.75 |
7/0.37 |
0.6/0.8 |
1.7/1.8 |
20.2/23.2 |
568/684 |
|
37×1 |
1/1.13 |
0.6/0.8 |
1.7/1.8 |
20.3/23.3 |
654/771 |
|
37×1 |
7/0.43 |
0.6/0.8 |
1.7/1.8 |
21.4/24.4 |
684/806 |
|
37×1.5 |
1/1.38 |
0.7/0.8 |
1.7/1.8 |
23.5/25.1 |
913/983 |
|
37×1.5 |
7/0.52 |
0.7/0.8 |
1.7/1.8 |
24.7/26.3 |
941/1014 |
|
37×2.5 |
1/1.78 |
0.8/0.8 |
1.7/1.8 |
27.7/28.1 |
1378/1403 |
|
37×2.5 |
7/0.68 |
0.8/0.8 |
1.7/1.8 |
29.5/29.9 |
1445/1471 |
|
44×0.75 |
1/0.97 |
0.6/0.8 |
1.7/1.8 |
21.4/24.8 |
635/770 |
|
44×0.75 |
7/0.37 |
0.6/0.8 |
1.7/1.8 |
22.5/25.9 |
666/802 |
|
44×1 |
1/1.13 |
0.6/0.8 |
1.7/1.8 |
22.6/26 |
769/906 |
|
44×1 |
7/0.43 |
0.6/0.8 |
1.7/1.8 |
23.9/27.3 |
803/947 |
|
44×1.5 |
1/1.38 |
0.7/0.8 |
1.7/1.9 |
26.2/28.2 |
1075/1168 |
|
44×1.5 |
7/0.52 |
0.7/0.8 |
1.7/1.9 |
27.7/29.7 |
1108/1207 |
|
44×2.5 |
1/1.78 |
0.8/0.8 |
2.0/2.0 |
31.6/31.6 |
1669/1669 |
|
44×2.5 |
7/0.68 |
0.8/0.8 |
2.0/2.0 |
33.7/33.7 |
1750/1750 |
|
48×0.75 |
1/0.97 |
0.6/0.8 |
1.7/1.8 |
21.7/25.2 |
681/820 |
|
48×0.75 |
7/0.37 |
0.6/0.8 |
1.7/1.8 |
22.8/26.3 |
714/860 |
|
48×1 |
1/1.13 |
0.6/0.8 |
1.7/1.8 |
23/26.5 |
826/973 |
|
48×1 |
7/0.43 |
0.6/0.8 |
1.7/1.8 |
24.3/27.8 |
863/1017 |
|
48×1.5 |
1/1.38 |
0.7/0.8 |
1.7/1.9 |
26.7/28.7 |
1158/1259 |
|
48×1.5 |
7/0.52 |
0.7/0.8 |
1.7/1.9 |
28.1/30.2 |
1193/1299 |
|
48×2.5 |
1/1.78 |
0.8/0.8 |
2.0/2.0 |
32.2/32.2 |
1800/1800 |
|
48×2.5 |
7/0.68 |
0.8/0.8 |
2/2.1 |
34.3/34.5 |
1888/1903 |
|
52×0.75 |
1/0.97 |
0.6/0.8 |
1.7/1.8 |
22.3/25.8 |
729/878 |
|
52×0.75 |
7/0.37 |
0.6/0.8 |
1.7/1.8 |
23.4/27 |
764/920 |
|
52×1 |
1/1.13 |
0.6/0.8 |
1.7/1.8 |
23.6/27.2 |
886/1043 |
|
52×1 |
7/0.43 |
0.6/0.8 |
1.7/1.9 |
25/28.7 |
925/1103 |
|
52×1.5 |
1/1.38 |
0.7/0.8 |
1.7/1.9 |
27.4/29.5 |
1244/1351 |
|
52×1.5 |
7/0.52 |
0.7/0.8 |
1.7/2 |
28.9/31.2 |
1281/1408 |
|
52×2.5 |
1/1.78 |
0.8/0.8 |
2.0/2.0 |
33/33 |
1935/1935 |
|
52×2.5 |
7/0.68 |
0.8/0.8 |
2/2.1 |
35.2/35.4 |
2029/2045 |
|
61×0.75 |
1/0.97 |
0.6/0.8 |
1.7/1.8 |
23.5/27.3 |
837/1008 |
|
61×0.75 |
7/0.37 |
0.6/0.8 |
1.7/1.9 |
24.8/28.8 |
878/1069 |
|
61×1 |
7/0.43 |
0.6/0.8 |
1.7/1.9 |
26.4/30.4 |
1065/1269 |
|
61×1.5 |
1/1.38 |
0.7/0.8 |
2.0/2.0 |
29.6/31.4 |
1476/1572 |
►High Quality Assurance
►Advantages
1, There is a professional design engineer team, before manufacturing, all of the product drawing will be approved by CSBTS (State Bureau of Quality Technical Supervision), and then the cable could be produced only if qualified.
2, To ensure the raw materials quality, all the copper are special-used for cable with the Inspection Certificates. The raw material is inspected when entering factory, and only the qualified material could be put in storage and used for production.
3, To ensure the product quality, there is a professional high level quality laboratory, most of the key technology date will be checked by high precision instrument
4, To ensure no problems before delivery, all the raw materials and cables are supervised and inspected again by the experts of inspection institution for inspection institution for cable. we could offer the international quality certification of ISO9001 and CE, and the inspection report of SGS, BV, etc, Quality Certificates.
►Company Overview
Founded in 1988, Henan Guowang (State-Grid) Cable Co., Ltd. is located in Xinzheng New Technology Industrial Zone, covering an area of 40,000 square meters and has own modern production workshops, hundreds of professional and technical employees, owning unique geographic location and optimum investment environment. Guowang focuses on the production and innovation of cables, our main products include: Aluminum series, Aerial insulated series, Low voltage power cable series, High voltage power cable and Rubber cable. We are obtaining vigorous development with an amazing speed in China and also becoming a very influential leader in cable area step by step.
.jpg)
