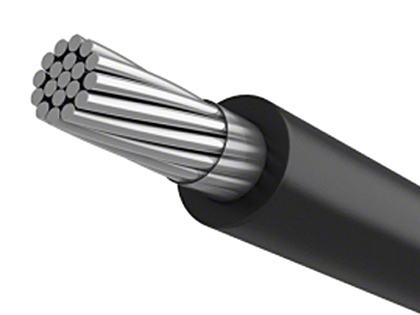

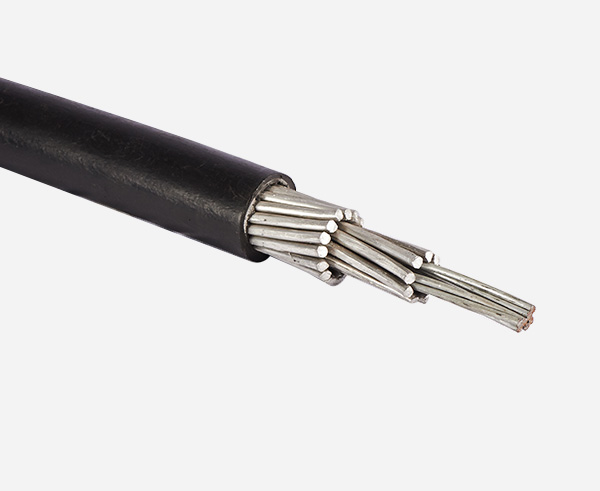

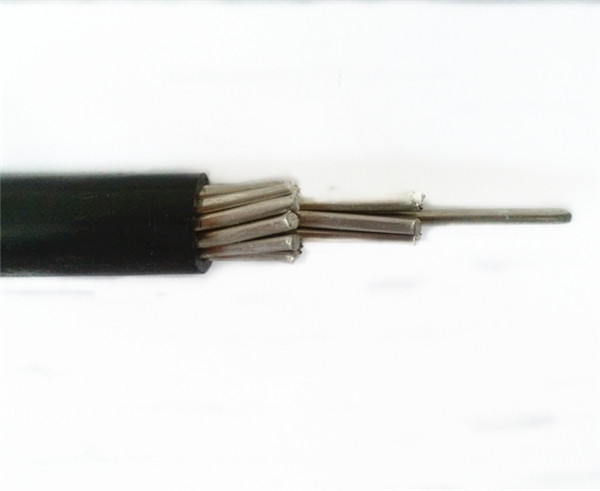

ABC cable--Covered Line Wire with Aluminum Conductor

Standard: ASTM
Insulation: XLPE PE PVC
Conductor: AAC, AAAC, ACSR
Jacket: XLPE
Cross section: 10mm2-300mm2
Conductor Type: Stranded

We're here to help:

Easy ways to get the answers you need.

(※ Click this button to inquiry)

share with :

Specifications
Technical Data
Inquiry

■ Specifications

► ApplicationCovered line Wire is used primarily for 600v overhead secondary distribution lines. It is not an electrically insulated conductor and is treated as bare conductor when installed.

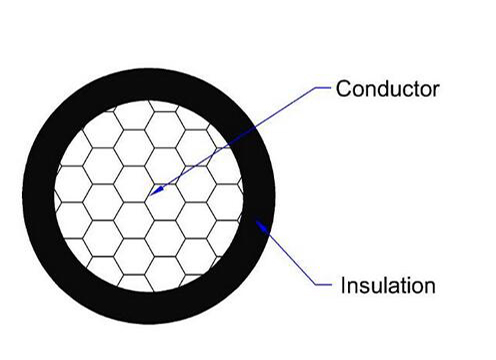

► ConstructionThe conductors are 1350-H19 Aluminum Wire ,6201-T81 Aluminum Alloy or ACSR conductors, concentrically stranded and covered for weather proofing with polyethylene, high density polyethylene(HDPE) or cross-linked polyethylene(XLPE).

► StandardASTM B-230 - Aluminum Wire 1350-H19 for Electrical Purposes
ASTM B-231 - Concentric-Lay-Stranded Aluminum Conductors
ASTM B-232 - Concentric-Lay-Stranded Aluminum Conductors, Coated-Steel Reinforced (ACSR)
ASTM B-399- Concentric-Lay-Stranded 6201-T81 Aluminum Alloy Conductors
ICEA S-61-402-: Thermoplastic-insulated Wire And Cable For The Transmission And Distribution Of Electrical Energy
ICEA S-66-524-XLPE Insulated Wire and Cable For the Transmission and Distribution of Electrical Energy

■ Technical Data

► Parameter

Covered line Wire--Aluminum Conductor
Code Name	Size AWG or kcmil	No.of wires	Insulation Thickness (mm)	Overall Diameter (mm)	Rated Strength (kg)	Nominal Weight (kg/km)				Allowable Ampacity+ A
Code Name	Size AWG or kcmil	No.of wires	Insulation Thickness (mm)	Overall Diameter (mm)	Rated Strength (kg)	Al	LDPE	HDPE	XLPE	Allowable Ampacity+ A
AAC
Plum	6	7	0.762	6.198	255	36.61	50.66	51.27	51.27	100
Apricot	4	7	0.762	7.239	400	58.19	75.57	76.33	76.33	135
Peach	2	7	1.143	9.703	612	92.56	126.09	127.55	127.55	180
Nectarine	1	7	1.143	11.481	789	116.67	167.31	169.52	169.52	210
Quince	1/0	7	1.524	12.395	903	147.48	203.7	206.14	206.14	240
Haw	1/0	19	1.524	12.522	980	147.48	204.49	206.96	206.96	240
Orange	2/0	7	1.524	14.834	1139	186.02	257.9	261.02	261.02	280
Ironwood	2/0	19	1.524	13.691	1211	186.02	250.41	253.21	253.21	280
Fig	3/0	7	1.524	16.307	1377	233.64	315.53	319.08	319.08	320
Lemon	3/0	19	1.524	14.986	1501	233.64	306.53	309.7	309.7	320
Olive	4/0	7	1.524	16.307	1728	296.14	378.04	381.58	381.58	370
Pomegranate	4/0	19	1.524	16.459	1823	296.14	379.09	382.69	382.69	370
Sassalras	250	19	1.524	17.628	2043	348.68	439.88	443.84	443.84	420
Mulberry	266.8	19	1.524	17.653	2182	372.19	463.59	467.55	467.55	460
Basswood	300	19	1.524	18.999	2404	419.66	520.91	525.3	525.3	478
Anona	336.4	19	1.524	19.964	2697	469.51	578.04	582.75	582.75	495
Chinquapin	350	19	1.524	20.269	2790	488.12	598.98	603.79	603.79	525
Molles	397.5	19	2.032	22.454	3123	555.08	707.29	713.88	713.88	550
Sumac	450	37	2.032	23.673	3719	628	791.79	798.89	798.89	600
Huckleberry	477	37	2.032	24.257	3810	665.21	834.63	841.98	841.98	610
ACSR
Walnut	6	6/1	0.762	6.553	540	36.46	69.94	71.43	71.43	105
Butternut	4	6/1	0.762	7.874	844	58.04	107.15	107.15	108.64	135
Hickory	4	7/1	0.762	8.052	1070	58.04	120.54	122.03	123.52	135
Pignut	2	6/1	1.143	10.312	1293	92.27	175.6	177.09	178.58	180
Beech	2	7/1	1.143	10.643	1651	92.27	199.41	199.41	202.39	180
Chestnut	1	6/1	1.143	11.303	1610	116.37	217.27	218.76	220.25	210
Almond	1/0	6/1	1.524	13.157	1987	146.73	282.75	284.24	287.21	235
Pecan	2/0	6/1	1.524	14.402	2404	184.98	348.23	349.72	349.72	290
Filbert	3/0	6/1	1.524	15.799	3003	233.34	430.08	433.05	437.52	305
Buckeye	4/0	6/1	1.524	17.348	3787	294.21	531.27	535.74	540.2	345
Hackberry	266.8	18/1	1.524	18.517	3121	372.63	525.32	528.3	534.25	356
AAAC
Maple	6	7	0.762	6.553	503	42.41	59.53	61.01	61.01	78
Hornbeam	4	7	0.762	7.874	798	67.56	89.29	90.78	92.12	145
Linden	2	7	1.143	10.312	1270	107.44	147.33	147.33	148.82	190
Oilnut	1/0	7	1.524	11.887	2023	170.99	238.11	247.03	247.03	250
Waterash	2/0	7	1.524	14.402	2445	215.63	291.68	302.01	302.01	290
Shellbark	3/0	7	1.524	15.799	3080	271.59	358.65	370.55	370.55	335
Planetree	4/0	7	1.524	17.348	3883	342.57	443.47	456.86	456.86	385

► High Quality Assurance

► Advantages1, There is a professional design engineer team, before manufacturing, all of the product drawing will be approved by CSBTS (State Bureau of Quality Technical Supervision), and then the cable could be produced only if qualified.

2, To ensure the raw materials quality, all the copper are special-used for cable with the Inspection Certificates. The raw material is inspected when entering factory, and only the qualified material could be put in storage and used for production.

3, To ensure the product quality, there is a professional high level quality laboratory, most of the key technology date will be checked by high precision instrument

4, To ensure no problems before delivery, all the raw materials and cables are supervised and inspected again by the experts of inspection institution for inspection institution for cable. we could offer the international quality certification of ISO9001 and CE, and the inspection report of SGS, BV, etc, Quality Certificates.
