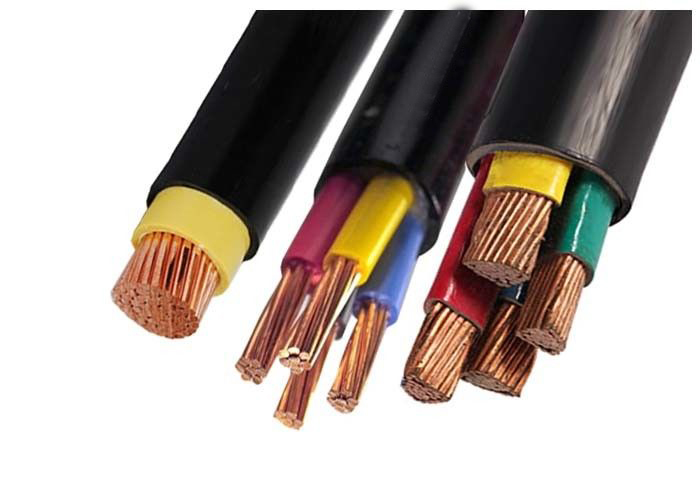

PVC Insulated Sheathed Power Cable (Unarmoured or Armoured)

Number of cores and Nominal cross area: 1*10mm2
Calculated external diameter : 8.8mm
Calculated weight (kg/km) : Copper core 163; Aluminium core 102
Calculated external diameter : 12.8mm
Calculated weight (kg/km) : Copper core 309 Aluminium core 248

We're here to help:

Easy ways to get the answers you need.

(※ Click this button to inquiry)

share with :

Specifications
Technical Data
Inquiry

■ Specifications

►Application
With the characteristics of stable capability, advanced technology, broad material resources, low price, good flexible and easy to lay and maintain, the PVC Insulated and Sheathed Power Cable(PVC cable) are suitable to be laid for distribution line with A.C.50HZ and rated voltage up to 6kV. Can be used for fixed installation indoors and outdoors in cable ducts or directly in the ground. The steel wire armoured cable is the accepted standard for underground installations, designed for use in mains supply electricity. These cables are provided with mechanical protection and are therefore suitable for external use, direct burial and areas where sudden mechanical stress are expected.

►Features
1. The long-time permissible working temperature of cable conductive core is not more than 70 °C.

2. During short circuit (max. permanent time is not more than 5 seconds), the max temperature of cable conductor is not more than 165°C.

3. The difference level of laying cable is not restricted. When laying the cable, ambient temperature is not lower than 0°C.

4. They have good chemical stability, and properties of acid resistance, alkali resistance, salt resistance, oil resistance, solvent resistance and flame resistance.

5. Light weight good bending property and easy installation and maintenance.

►Standard
1、 IEC, BS, VDE, AS/NZS, ICEA, JIS and so on.

2、 Design & manufacture special power cable according to customer’s special request.

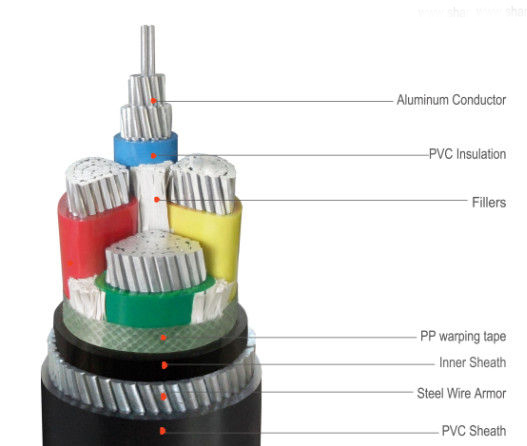

►Construction
Conductor material: Copper or Aluminum

Insulation material: PVC (Polyvinyl Chloride)

Sheath Material: PVC(Polyvinyl Chloride)

Appearance shape: Round

Rated voltage: 0.6 / 1kV

Sheath Color: Black

Amour: Steel Wire Armoured

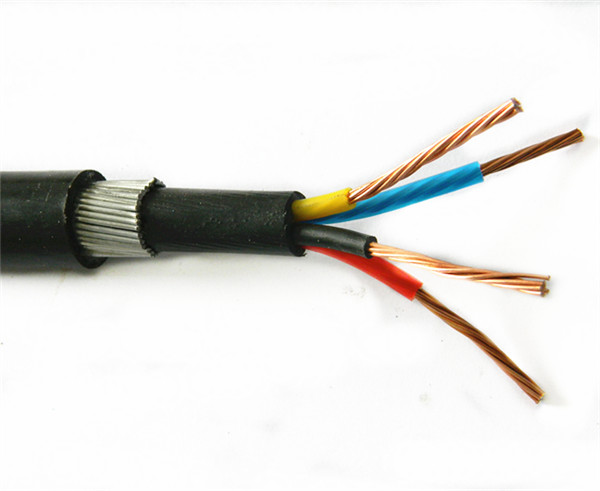

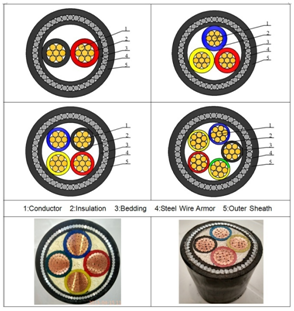

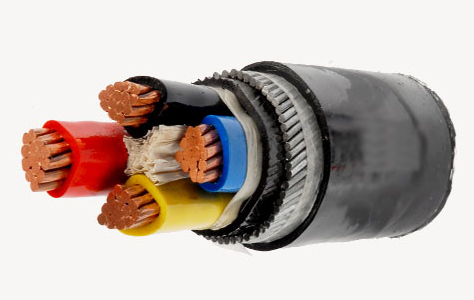

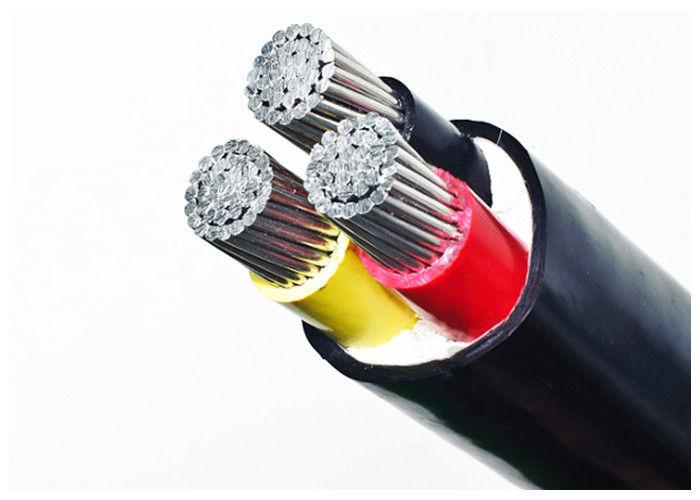

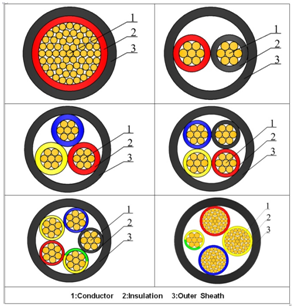

Unarmoured Armoured

■ Technical Data

►Parameter

1)600/1000V, Single Core, Circular Compacted Al or Cu/PVC/PVC Unarmoured or Armoured Power Cable

Cross Section of Conductor	No. of Wires	Thickness of Insulation	Unarmoured				Armoured
			Thickness of Sheath	Overall Dia.	Approx.Net Weight		Thickness of Bedding	Thickness of Al Tape	Thickness of Sheath	Overall Dia.	Approx.Net Weight
			Thickness of Sheath	Overall Dia.	Al Conductor	Cu Conductor	Thickness of Bedding	Thickness of Al Tape	Thickness of Sheath	Overall Dia.	Al Conductor	Cu Conductor
mm2	-	mm	mm	mm	kg/km	kg/km	mm	mm	mm	mm	kg/km	kg/km
1.5	1	0.8	1.4	5.8	-	51	-	-	-	-	-	-
2.5	1	0.8	1.4	6.2	-	64	-	-	-	-	-	-
4	1	1	1.4	7.1	-	88	-	-	-	-	-	-
6	7	1	1.4	7.8	78	114	-	-	-	-	-	-
10	7	1	1.4	8.6	96	159	1	0.5	1.8	13.4	234	295
16	7	1	1.4	9.6	123	222	1	0.5	1.8	14.4	274	370
25	7	1.2	1.4	11.2	172	328	1	0.5	1.8	16	344	496
35	7	1.2	1.4	12.2	209	428	1	0.5	1.8	17	393	606
50	19	1.4	1.4	13.9	271	565	1	0.5	1.8	18.7	478	764
70	19	1.4	1.5	15.9	356	818	1	0.5	1.8	20.5	582	1020
95	19	1.6	1.5	18	471	1041	1	0.5	1.8	22.6	717	1291
120	37	1.6	1.6	19.6	563	1307	1	0.5	1.8	24	822	1545
150	37	1.8	1.6	21.3	684	1592	1	0.5	1.8	25.4	952	1857
185	37	2	1.7	23.9	840	1985	1	0.5	1.8	27.9	1136	2236
240	61	2.2	1.8	27	1071	2533	1	0.5	1.9	31	1404	2877
300	61	2.4	1.9	29.6	1317	3162	1.2	0.5	2.1	34.3	1722	3551
400	61	2.6	2	33.2	1666	4120	1.2	0.5	2.2	37.6	2114	4488
500	61	2.8	2.2	37.5	2089	5163	1.2	0.5	2.3	42.1	2592	5683
630	61	2.8	2.3	41.2	2581	6447	1.4	0.5	2.4	46.3	3184	7060

　　2)600/1000V, Multi Cores, Sectoral Compacted Al or Cu/PVC/PVC Unarmoured Power Cable

Number of Cores	Cross-Section of Conductor	No. Of Wires	Thickness of Insulation	Thickness of Sheath	Overall Diameter	Approx. Net Weight
Number of Cores	Cross-Section of Conductor	No. Of Wires	Thickness of Insulation	Thickness of Sheath	Overall Diameter	Al Conductor	Cu Conductor
-	mm2	-	mm	mm	mm	kg/km	kg/km
Three Cores	3x35	16	1.2	1.8	21.9	601	1280
	3x50	18	1.4	1.8	26.5	829	1732
	3x70	18	1.4	1.9	29.2	1067	2367
	3x95	36	1.6	2	32.9	1409	2317
	3x120	36	1.6	2.1	36.2	1705	3983
	3x150	36	1.8	2.2	38.8	2045	4872
	3x185	36	2	2.4	44.8	2596	6077
	3x240	60	2.2	2.6	51.5	3353	7953
	3x300	60	2.4	2.7	54.9	6069	9820
Four Cores with Reduced Neutral	3x35+16	16-7	1.2-1	1.8	25.5	764	1107
	3x50+25	18-16	1.4-1.2	1.9	28.7	982	1410
	3x70+35	18-16	1.4-1.2	2.0	32	1278	1733
	3x95+50	36-18	1.6-1.4	2.2	37.8	1711	2656
	3x120+70	36-18	1.6-1.4	2.3	40.5	2065	3137
	3x150+70	36-18	1.8-1.4	2.4	44.8	2480	3660
	3x185+95	36-36	2-1.6	2.6	49.7	3086	4345
	3x240+120	60-36	2.2-1.6	2.8	56	3894	5441
	3x300+150	60-36	1.4-1.8	2.9	60.3	4834	6494
Four Cores	4x25	16	1.2	1.8	22.5	644	1286
	4x35	16	1.2	1.8	24.6	799	1696
	4x50	18	1.4	1.8	28.6	1071	2275
	4x70	18	1.4	2	31.6	1387	3120
	4x95	36	1.6	2.1	35.9	1850	4262
	4x120	36	1.6	2.2	38.8	2209	5247
	4x150	36	1.8	2.3	43.1	2714	6483
	4x185	36	2	2.5	48.7	3403	8045
	4x240	60	2.2	2.7	53.6	4290	10422
	4x300	60	2.4	2.9	58.8	5302	12969

　　3)600/1000V, Multi Cores, Circular Compacted Al or Cu/PVC/PVC Unarmoured Power Cable

Number of Cores	Cross-Section of Conductor	No. Of Wires	Thickness of Insulation	Thickness of Sheath	Overall Diameter	Approx. Net Weight
Number of Cores	Cross-Section of Conductor	No. Of Wires	Thickness of Insulation	Thickness of Sheath	Overall Diameter	Al Conductor	Cu Conductor
-	mm2	-	mm	mm	mm	kg/km	kg/km
Three Cores	3x10	7	1	1.8	16.6	281	465
	3x16	7	1	1.8	18.7	387	679
	3x25	7	1.2	1.8	22.2	536	996
	3x35	7	1.2	1.8	24.4	665	1311
	3x50	19	1.4	1.9	28.1	863	1729
	3x70	19	1.4	2	32.3	1153	2480
	3x95	19	1.6	2.1	37.1	1563	3301
	3x120	37	1.6	2.3	40.4	1850	4040
	3x150	37	1.8	2.4	43.9	2258	5000
	3x185	37	2	2.5	49.2	2819	6151
	3x240	61	2.2	2.8	55.9	3577	8040
	3x300	61	2.4	3	62.1	4413	9955
	3x400	61	2.6	3.2	69.3	5512	12705
Four Cores	4x10	7	1	1.8	18.1	343	589
	4x16	7	1	1.8	20.5	487	874
	4x25	7	1.2	1.8	24.3	677	1291
	4x35	7	1.2	1.8	26.8	821	1681
	4x50	19	1.4	2	31.2	1118	2273
	4x70	19	1.4	2.1	35.8	1494	3264
	4x95	19	1.6	2.3	41.2	1993	4312
	4x120	37	1.6	2.4	44.8	2370	5291
	4x150	37	1.8	2.5	48.7	2959	6615
	4x185	37	2	2.7	54.7	3601	8044
	4x240	61	2.2	3	62.1	4596	10547
	4x300	61	2.4	3.2	69.1	5614	13004

　　4)600/1000V, Multi Cores, Sectoral Compacted Al or Cu/PVC/PVC Armoured Power Cable

Cross Section of Conductor	No. of Wires	Thickness of Insulation	Thickness of Inner Sheath	Thickness of Steel Tape	No./Dia. Of Steel Wires	Thickness of Sheath		Overall Diameter		Approx. Net Weight
				Thickness of Steel Tape	No./Dia. Of Steel Wires	Thickness of Sheath		Overall Diameter		STA		SWA
				STA	SWA	STA	SWA	STA	SWA	Al Conductor	Cu Conductor	Al Conductor	Cu Conductor
mm2	-	mm	mm	mm	No./mm	mm	mm	mm	mm	kg/km	kg/km	kg/km	kg/km
Three Cores
3x35	16	1.2	1	0.2	38/1.6	1.8	1.9	24.7	28.2	912	1591	1447	2126
3x50	18	1.4	1	0.2	46/1.6	1.9	2	29.3	32.8	1202	2105	1842	2745
3x70	18	1.4	1.2	0.2	41/2.0	2.0	2.2	32.5	37.1	1520	2820	2475	3775
3x95	36	1.6	1.2	0.5	46/2.0	2.1	2.3	36.5	40.8	2241	4049	2989	4797
3x120	36	1.6	1.2	0.5	50/2.0	2.2	2.4	39.8	44.1	2617	4895	3435	5713
3x150	36	1.8	1.2	0.5	43/2.5	2.3	2.5	42.4	47.8	3019	5846	4258	7085
3x185	36	2	1.4	0.5	50/2.5	2.5	2.7	48.8	54.2	3783	7264	5219	8700
3x240	60	2.2	1.6	0.5	58/2.5	2.8	2.9	56	61.3	4790	9390	6444	11044
3x300	60	2.4	1.6	0.5	61/2.5	2.9	3.1	59.3	64.7	5594	11345	7458	13209
Four Cores with Reduced Neutral
3x35+16	16-7	1.2-1	1	0.2	43/1.6	1.9	2	28.5	31.3	1107	1528	1705	2469
3x50+25	18-16	1.4-1.2	1.2	0.2	40/2.0	2.0	2.1	32.2	36.1	1410	2044	2326	3388
3x70+35	18-16	1.4-1.2	1.2	0.2	44/2.0	2.0	2.2	35.2	39.3	1733	2801	2762	4285
3x95+50	36-18	1.6-1.4	1.2	0.5	41/2.5	2.3	2.5	42.5	46.3	2656	3820	3816	5925
3x120+70	36-18	1.6-1.4	1.4	0.5	45/2.5	2.4	2.6	45.6	49.4	3137	4777	4391	7103
3x150+70	36-18	1.8-1.4	1.4	0.5	49/2.5	2.6	2.7	49.9	53.6	3660	5709	5043	8272
3x185+95	36-36	2-1.6	1.4	0.5	55/2.5	2.6	2.9	54.5	58.5	3445	7171	5902	9987
3x240+120	60-36	2.2-1.6	1.6	0.5	62/2.5	2.9	3.1	61.6	65.3	5441	9272	7174	12552
3x300+150	60-36	1.4-1.8	1.6	0.5	67/2.5	3.8	3.2	65.9	69.6	6494	11546	8355	15067
Four Cores
4x25	16	1.2	1	0.2	38/1.6	1.8	1.9	25.3	28	934	1576	1450	2092
4x35	16	1.2	1	0.2	41/1.6	1.8	1.9	27.4	30.2	1120	2017	1681	2578
4x50	18	1.4	1	0.2	39/2.0	2	2.1	31.6	35.6	1454	2658	2336	3540
4x70	18	1.4	1.2	0.5	43/2.0	2.1	2.2	36.3	39	2183	3916	2840	4573
4x95	36	1.6	1.2	0.5	50/2.0	2.3	2.4	40.6	44.1	2748	5160	3545	5957
4x120	36	1.6	1.4	0.5	42/2.5	2.4	2.5	43.9	47.2	3237	6214	4334	7372
4x150	36	1.8	1.4	0.5	48/2.5	2.5	2.6	48.3	52	3853	7622	5148	8917
4x185	36	2	1.6	0.5	54/2.5	2.7	2.8	54.3	57.6	4756	9323	6132	10774
4x240	60	2.2	1.6	0.5	59/2.5	2.9	3	59.2	62.9	5774	11906	7374	13506
4x300	60	2.4	1.6	0.5	65/2.5	3	3.2	64.3	68.1	6922	14589	8624	16291

　　5)600/1000V, Multi Cores, Circular Compacted Al or Cu/PVC/PVC Armoured Power Cable

Cross Section of Conductor	No. of Wires	Thickness of Insulation	Thickness of Inner Sheath	Thickness of Steel Tape	No./Dia. Of Steel Wires	Thickness of Sheath		Overall Diameter		Approx. Net Weight
				Thickness of Steel Tape	No./Dia. Of Steel Wires	Thickness of Sheath		Overall Diameter		STA		SWA
				STA	SWA	STA	SWA	STA	SWA	Al Conductor	Cu Conductor	Al Conductor	Cu Conductor
mm2	-	mm	mm	mm	No./mm	mm	mm	mm	mm	kg/km	kg/km	kg/km	kg/km
Three Cores
3x10	7	1	1	0.2	35/1.25	1.8	1.8	19.4	21.5	494	679	988	1172
3x16	7	1	1	0.2	32/1.6	1.8	1.8	21.5	24.3	604	895	1051	1343
3x25	7	1.2	1	0.2	38/1.6	1.8	1.8	25	27.9	791	1252	1329	1790
3x35	7	1.2	1	0.2	42/1.6	1.8	1.9	27.2	30.2	950	1595	1551	2196
3x50	19	1.4	1.1	0.2	39/2.0	2	2.1	31.3	35.2	1213	2079	2128	2994
3x70	19	1.4	1.2	0.5	45/2.0	2.1	2.2	35.6	40.1	1567	2894	2678	4005
3x95	19	1.6	1.3	0.5	42/2.5	2.3	2.4	42	46.2	2449	4188	3689	5428
3x120	37	1.6	1.3	0.5	45/2.5	2.4	2.5	45.3	49.6	2823	5014	4174	6364
3x150	37	1.8	1.4	0.5	49/2.5	2.5	2.7	48.9	53.2	3327	6069	4795	7537
3x185	37	2	1.5	0.5	56/2.5	2.7	2.8	54.5	58.7	4038	7371	5686	9019
3x240	61	2.2	1.6	0.5	63/2.5	2.9	3.1	61.4	65.2	4994	9457	6862	11325
3x300	61	2.4	1.7	0.5	70/2.5	3.2	3.3	67.9	71.7	6022	11564	8101	13643
3x400	61	2.6	1.9	0.5	62/3.15	3.4	3.6	75.4	80.5	7350	14543	10535	17728
Four Cores
4x10	7	1	1	0.2	39/1.25	1.8	1.8	20.9	23	552	798	1073	1319
4x16	7	1	1	0.2	35/1.6	1.8	1.8	23.3	26.1	723	1110	1213	1601
4x25	7	1.2	1	0.2	42/1.6	1.8	1.9	27.2	30.2	959	1573	1559	2173
4x35	7	1.2	1	0.2	37/2.0	1.9	2	29.7	33.6	1140	2000	2006	2866
4x50	19	1.4	1.2	0.2	44/2.0	2.1	2.2	34.6	38.4	1524	2679	2541	3696
4x70	19	1.4	1.2	0.5	50/2.0	2.3	2.3	40.5	43.7	2338	4107	3187	4956
4x95	19	1.6	1.2	0.5	46/2.5	2.4	2.6	45.9	50.2	2955	5274	4325	6644
4x120	37	1.6	1.4	0.5	51/2.5	2.6	2.7	50	54.2	3466	6387	4568	7888
4x150	37	1.8	1.4	0.5	55/2.5	2.7	2.8	53.8	58.1	4144	7800	5772	9428
4x185	37	2	1.6	0.5	62/2.5	2.9	3	60.2	64.5	4987	9430	6822	11266
4x240	61	2.2	1.6	0.5	70/2.5	3.1	3.3	67.7	71.5	6161	12111	8233	14184
4x300	61	2.4	1.6	0.5	61/3.15	3.4	3.5	74.7	78.8	7346	14735	10305	17694

►High Quality Assurance

►Advantages
1, There is a professional design engineer team, before manufacturing, all of the product drawing will be approved by CSBTS (State Bureau of Quality Technical Supervision), and then the cable could be produced only if qualified.

2, To ensure the raw materials quality, all the copper are special-used for cable with the Inspection Certificates. The raw material is inspected when entering factory, and only the qualified material could be put in storage and used for production.

3, To ensure the product quality, there is a professional high level quality laboratory, most of the key technology date will be checked by high precision instrument

4, To ensure no problems before delivery, all the raw materials and cables are supervised and inspected again by the experts of inspection institution for inspection institution for cable. we could offer the international quality certification of ISO9001 and CE, and the inspection report of SGS, BV, etc, Quality Certificates.
