► ApplicationPrimarily used for 120 volt overhead service applications such as street lighting, outdoor lighting, and temporary service for construction. To be used at voltages of 600 volts phase-to-phase or less and at conductor temperatures not to exceed 75°C for polyethylene insulated conductors or 90°C for cross-linked polyethylene (XLPE) insulated conductors.

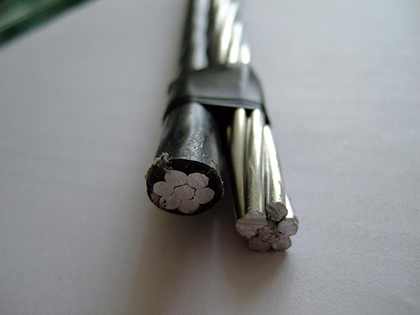

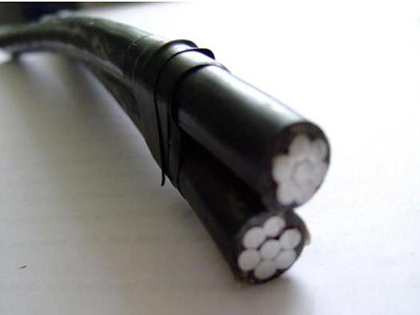

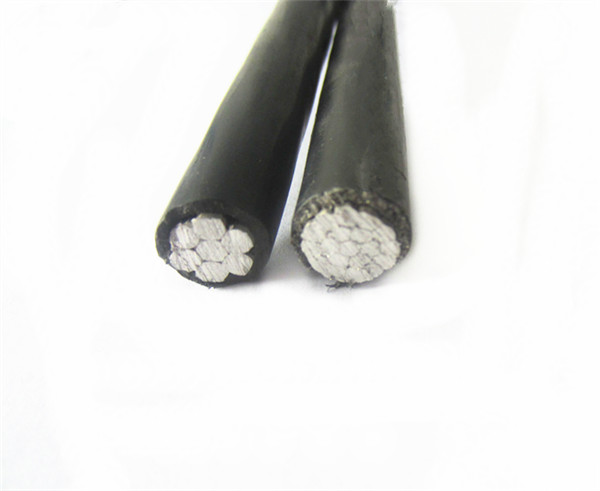

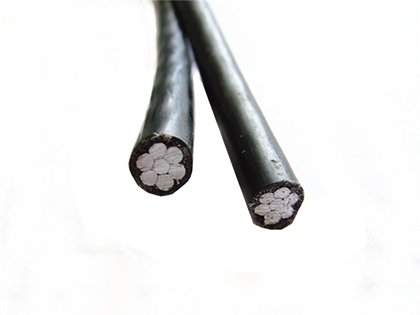

► ConstructionConductors are concentrically stranded, compressed 1350-H19 aluminum. Insulated with either polyethylene or cross-linked polyethylene (XLPE).
Neutral messengers are concentrically stranded 6201, AAC, or ACSR.

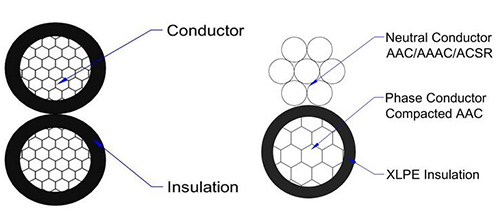

.jpg)
► StandardDuplex service drop cable meets or exceeds the following ASTM specifications:
• B-230 Aluminum Wire, 1350-H19 for Electrical Purposes.
• B-231 Aluminum Conductors, Concentric-Lay-Stranded.
• B-232 Aluminum Conductors, Concentric-Lay-Stranded, Coated Steel Reinforced (ACSR).
• B-399 Concentric-Lay-Stranded 6201-T81 Aluminum Alloy Conductors.
•ICEA S-76-474-Neutral-supported Power Cable Assemblies With Weather-Resistant Extruded Insulation Rated 600Volts
|
Duplex service drop |
|
||||||||||
|
Code Name |
Phase conductor |
Bare Neutral Message |
Nominal Weight |
Allowable Ampacity |
|||||||
|
Size & No.of wires |
Insulation Thick |
Nominal Dia. |
Size & No.of wires |
Rated Strength |
XLPE |
Al |
Total |
|
|||
|
Bare |
OD |
|
|||||||||
|
AAC |
|
||||||||||
|
Pekingese |
6-Solid |
1.14 |
4.1 |
6.4 |
6-7 |
255 |
20.8 |
72.9 |
94 |
78 |
|
|
Collie |
6-7 |
1.14 |
4.6 |
6.9 |
6-7 |
255 |
23.8 |
72.9 |
97 |
78 |
|
|
Cocker |
6-7 |
1.52 |
4.6 |
7.7 |
6-7 |
255 |
32.7 |
72.9 |
106 |
78 |
|
|
Dachshund |
4-Solid |
1.14 |
5.2 |
7.5 |
6-7 |
400 |
26.8 |
114.6 |
141 |
103 |
|
|
Spaniel |
4-7 |
1.14 |
5.9 |
8.2 |
6-7 |
400 |
29.8 |
116.1 |
146 |
103 |
|
|
Cairn |
4-7 |
1.52 |
5.9 |
8.9 |
6-7 |
400 |
40.2 |
116.1 |
156 |
103 |
|
|
Doberman |
2-7 |
1.14 |
7.4 |
9.7 |
2-7 |
612 |
38.7 |
184.5 |
223 |
136 |
|
|
Airedale |
1-19 |
1.52 |
8.4 |
11.5 |
1-7 |
－ |
56.5 |
233.6 |
290 |
158 |
|
|
Basset |
1/0-7 |
1.52 |
9.3 |
12.4 |
1/0-7 |
903 |
64 |
294.7 |
359 |
182 |
|
|
Malemure |
1/0-19 |
1.52 |
9.4 |
12.5 |
1/0-7 |
903 |
64 |
294.7 |
359 |
182 |
|
|
AAAC |
|
||||||||||
|
Chihuahua |
6-Solid |
1.14 |
4.1 |
6.4 |
6-7 |
499 |
20.8 |
72.9 |
94 |
78 |
|
|
VIzsla |
6-7 |
1.14 |
4.6 |
6.9 |
6-7 |
499 |
23.8 |
72.9 |
97 |
78 |
|
|
Harrier |
4-Solid |
1.14 |
5.2 |
7.5 |
4-7 |
798 |
26.8 |
116.1 |
143 |
103 |
|
|
Whippet |
4-7 |
1.14 |
5.9 |
8.2 |
4-7 |
798 |
29.8 |
116.1 |
146 |
103 |
|
|
Schnauzer |
2-7 |
1.14 |
7.4 |
9.7 |
2-7 |
1270 |
39.7 |
184.5 |
223 |
136 |
|
|
Afghan |
1/0-7 |
1.52 |
9.3 |
12.4 |
1/0-7 |
2023 |
64 |
296.1 |
360 |
182 |
|
|
Hocler |
1/0-19 |
1.52 |
9.4 |
12.5 |
1/0-7 |
2023 |
64 |
296.1 |
360 |
182 |
|
|
ACSR |
|
||||||||||
|
Setter |
6-Solid |
1.14 |
4.1 |
6.4 |
6/6/01 |
540 |
20.8 |
72.9 |
94 |
78 |
|
|
Shepherd |
6-7 |
1.14 |
4.6 |
6.9 |
6/6/01 |
540 |
23.8 |
72.9 |
97 |
78 |
|
|
Retriever |
6-7 |
1.52 |
4.6 |
7.7 |
6/6/01 |
540 |
32.7 |
72.9 |
106 |
78 |
|
|
Eskimo |
4-Solid |
1.14 |
5.2 |
7.5 |
4/6/01 |
844 |
26.8 |
114.6 |
141 |
103 |
|
|
Terrier |
4-7 |
1.14 |
5.9 |
8.2 |
4/6/01 |
844 |
29.8 |
116.1 |
146 |
103 |
|
|
Yorkshirc |
4-7 |
1.52 |
5.9 |
8.9 |
4/6/01 |
844 |
40.2 |
116.1 |
156 |
103 |
|
|
Chow |
2-7 |
1.14 |
7.4 |
9.7 |
2/6/01 |
1293 |
38.7 |
184.5 |
223 |
136 |
|
|
Labrador |
1-19 |
1.52 |
8.4 |
11.5 |
1/6/01 |
1610 |
56.5 |
233.6 |
290 |
158 |
|
|
Bloodhound |
1/0-7 |
1.52 |
9.3 |
12.4 |
1/0-6/1 |
1987 |
64 |
294.7 |
359 |
182 |
|
|
Bull |
1/0-19 |
1.52 |
9.4 |
12.5 |
1/0-6/1 |
1987 |
64 |
294.7 |
359 |
182 |
|
