►Description
A submersible pump cable is a specialized product to be used for a submersible pump in a deep well, or in similarly harsh conditions. The cable needed for this type of application must be durable and reliable as the installation location and environment can be extremely restrictive as well as hostile. As such, submersible pump cable can be used in both fresh and salt water. It is also suitable for direct burial and within well castings. A submersible pump cable's area of installation is physically restrictive.
►Application
Submersible Pump cables is a specialized product to be used for submersible pumps in a deep well. The area of installation is physically restrictive, and the environment is very hostile. For continuous use in deep well to supply power to submersible pumps down to depths of 500 mtrs.
►Standard
This product is manufactured according to GJB 1916-94, MIL-C-24643, IEC 60092-353, IEC 60332-1, IEC 60332-3, IEC 60331, IEC 61034, IEC 60754
►Packing
1. Inner packing: plastic drum, wooden drum
2. Outer packing: paper carton, pull out box
3. Packing length:60m/roll,90m/roll,100m/roll,300m/roll,305m/roll, etc.
4. Other packing according to the client's request

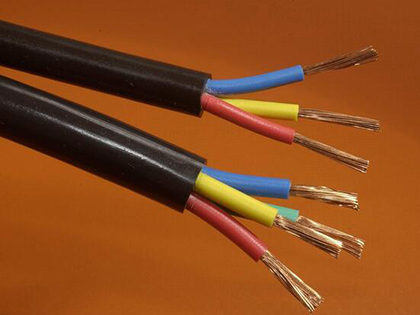

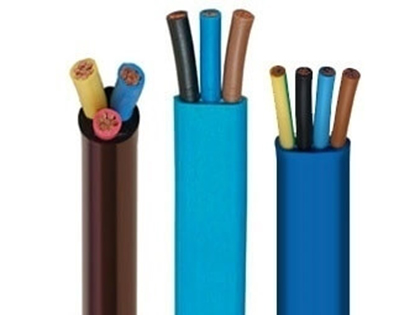

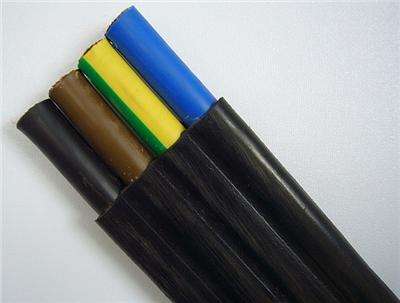

►Construction
Copper: flexible copper wire or tinned copper wire
Insulation: PVC
Outer Sheath: Special
PVC : Black, Blue
Cores color: Core Identification
3 core: Black, Light Blue and Brown Red, Yellow and Blue
4 core: Black, Light Blue, Brown, Yellow with Green core/ Green with Yellow core
|
650/1100 VOLTS RELEMAC 3CORE FLAT CABLES FOR SUBMERSIBLE PUMPS |
||||||||
|
CONDUCTOR |
PVC INSULATION |
PVC SHEATH |
CURRENT |
Approx |
||||
|
Nominal |
Nos. & Dia. |
Nominal |
Nominal |
Nominal |
Approx. Overall |
|||
|
Sq. mm. |
Nos. / mm |
mm |
mm |
mm |
Thickness |
Width |
||
|
1.5 |
22/0.30 |
0.8 |
3.25 |
1.15 |
6.0 |
12.8 |
14 |
103 |
|
2.5 |
36/0.30 |
0.9 |
3.84 |
1.15 |
6.4 |
14.6 |
18 |
152 |
|
4.0 |
56/0.30 |
1.0 |
4.50 |
1.15 |
7.4 |
16.8 |
26 |
211 |
|
6.0 |
85/0.30 |
1.0 |
5.30 |
1.15 |
7.9 |
18.7 |
31 |
306 |
|
10.0 |
140/0.30 |
1.0 |
6.50 |
1.40 |
9.9 |
23.7 |
42 |
502 |
|
16.0 |
226/0.30 |
1.0 |
8.00 |
1.40 |
11.4 |
28.0 |
57 |
746 |
|
25.0 |
354/0.30 |
1.2 |
10.10 |
2.00 |
14.7 |
35.5 |
72 |
1143 |
|
35.0 |
495/0.30 |
1.2 |
11.30 |
2.00 |
16.2 |
39.5 |
90 |
1495 |
|
50.0 |
703/0.30 |
1.4 |
13.60 |
2.20 |
18.3 |
45.5 |
115 |
2062 |
|
70.0 |
440/0.45 |
1.4 |
15.30 |
2.20 |
20.0 |
51.0 |
143 |
2685 |
|
95.0 |
475/0.50 |
1.6 |
18.00 |
2.40 |
23.5 |
60.0 |
165 |
3325 |
►High Quality Assurance
►Advantages
1, There is a professional design engineer team, before manufacturing, all of the product drawing will be approved by CSBTS (State Bureau of Quality Technical Supervision), and then the cable could be produced only if qualified.
2, To ensure the raw materials quality, all the copper are special-used for cable with the Inspection Certificates. The raw material is inspected when entering factory, and only the qualified material could be put in storage and used for production.
3, To ensure the product quality, there is a professional high level quality laboratory, most of the key technology date will be checked by high precision instrument
4, To ensure no problems before delivery, all the raw materials and cables are supervised and inspected again by the experts of inspection institution for inspection institution for cable. we could offer the international quality certification of ISO9001 and CE, and the inspection report of SGS, BV, etc, Quality Certificates.
►Company Overview
Founded in 1988, Henan Guowang (State-Grid) Cable Co., Ltd. is located in Xinzheng New Technology Industrial Zone, covering an area of 40,000 square meters and has own modern production workshops, hundreds of professional and technical employees, owning unique geographic location and optimum investment environment. Guowang focuses on the production and innovation of cables, our main products include: Aluminum series, Aerial insulated series, Low voltage power cable series, High voltage power cable and Rubber cable. We are obtaining vigorous development with an amazing speed in China and also becoming a very influential leader in cable area step by step.
