ACSR-Aluminium Conductor Steel Reinforced

Code Word: Mole
Overall Diameter: 4.50mm
Approximate Weight: 42.8Kg/km
Breaking Load: 4.17kN
DC Resistance: 2.7027Ohm/km
Current Rating Capacity: 67A

We're here to help:

Easy ways to get the answers you need.

(※ Click this button to inquiry)

share with :

Specifications
Technical Data
Inquiry

■ Specifications

►Description
Bare aluminum conductors, especially in the form of Aluminum Conductors Steel Reinforced(ACSR), have been widely used for overhead transmission lines as the most cost-effective and dependable product.
As the name implies, ACSR is a concentrically stranded conductor composed of one or more layers of hard-drawn EC grade aluminum wires over a high strength coated steel core. The core may be single wire or stranded, depending on the size. Because of the numerous stranding combinations of aluminum and steel wires that may be used, it is possible to vary the portions of aluminum and steel so as to obtain the most suitable relation between current carrying capacity and mechanical strength for each application.

►Application
With simple structure, the aluminum conductor steel reinforced is easy to set up and maintain, with low cost and high transmission capacity. it is advantageous for this ACSR to be put up across a valley or river or under other various special geographic conditions. The ACSR has advantages of sound electrical geographic conductivity, high mechanical strength, high tensile strength, etc and the pole distance can be lengthened. it is used for power transmission lines with various voltage levels and plays an important role in the electricity transmission field.

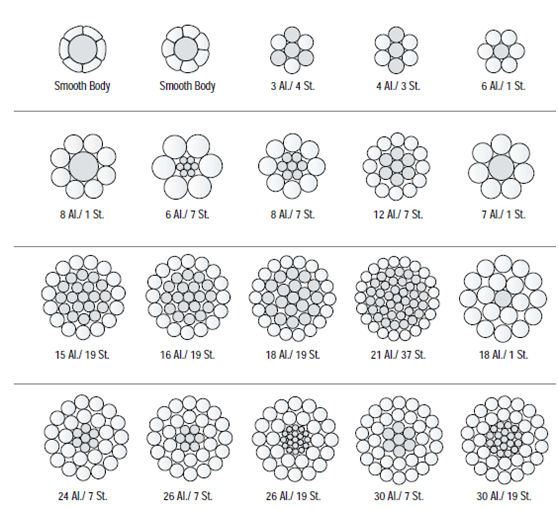

►Construction

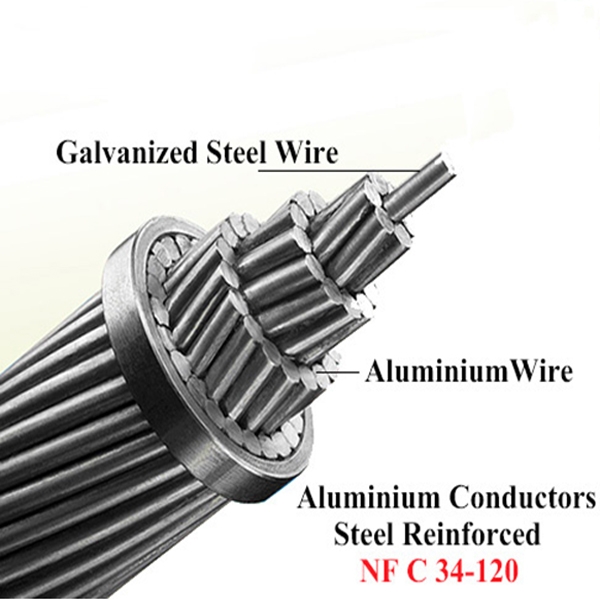

ACSR is a concentric-lay-stranded conductor consisting of a single core wire or a stranded steel central core with one or more layers of 1350 H19 stranded aluminum wires. The steel core wires are protected from corrosion by galvanizing, aluminum-clad alloy or zinc-5% aluminum alloy coating. Standard, high, extra and ultra high strength steel is also available.

►Standard
ASTM B232, BS 215 Part 2 , DIN 48204, IEC 61089, JIS C3110-78, NF C34-120

■ Technical Data

►Parameter

ACSR--Aluminum Conductors Steel Reinforced ASTM B 232
Code name	Area				Stranding and wire diameter		Approx. overall diameter mm	Weight			Nominal breaking load kN	Nominal DC resistance at 20 deg. Ohm/km
	Nominal AWGorMCM	Alum. mm2	Steel mm2	Total mm2	Alum. mm	Steel mm		Alum. kg/km	Steel kg/km	Total kg/km
	Nominal AWGorMCM	Alum. mm2	Steel mm2	Total mm2	Alum. mm	Steel mm		Alum. kg/km	Steel kg/km	Total kg/km
TURKEY	6	13.29	2.19	15.48	6/1.68	1/1.68	5.04	37	17	54	5.24	2.1586
SWAN	4	21.16	3.55	24.71	6/2.12	1/2.12	6.36	58	27	85	8.32	1.3557
SWANATE	4	21.16	5.35	26.51	7/1.96	1/2.61	6.53	58	42	100	10.53	1.3557
SPARROW	2	33.61	5.61	39.22	6/2.67	1/2.67	8.01	92	44	136	12.7	0.8535
SPARATE	2	33.61	8.52	42.13	7/2.47	1/3.30	8.24	92	67	159	16.11	0.8535
ROBIN	1	42.39	7.10	49.49	6/3.00	1/3.00	9.00	116	55	171	15.85	0.6767
RAVEN	1/0	53.48	8.90	62.38	6/3.37	1/3.37	10.11	147	69	216	19.32	0.5364
QUAIL	2/0	67.42	11.23	78.65	6/3.78	1/3.78	11.34	185	88	273	23.62	0.4255
PIGEON	3/0	85.03	14.19	99.22	6/4.25	1/4.25	12.75	233	110	343	29.41	0.3373
PENGUIN	4/0	107.23	17.87	125.10	6/4.77	1/4.77	14.31	294	139	433	37.06	0.2675
WAXWING	266.8	135.16	7.48	142.64	18/3.09	1/3.09	15.45	373	58	431	30.27	0.2133
PARTRIDGE	266.8	135.16	22.00	157.16	26/2.57	7/2.00	16.28	374	172	546	50.29	0.2143
OSTRICH	300	152.00	24.71	176.71	26/2.73	7/2.12	17.28	421	193	614	56.52	0.1906
MERLIN	336.4	170.45	9.48	179.93	18/3.47	1/3.47	17.35	470	74	544	38.23	0.1691
LINNET	336.4	170.45	27.81	198.26	26/2.89	7/2.25	18.31	472	217	689	62.71	0.1699
ORIOLE	336.4	170.45	39.81	210.26	30/2.69	7/2.69	18.83	473	311	784	77.27	0.1704
CHICKADEE	397.5	201.42	11.16	212.58	18/3.77	1/3.77	18.85	555	87	642	43.99	0.1431
BRANT	397.5	201.42	26.13	227.55	24/3.27	7/2.18	19.61	558	204	762	64.69	0.1438
IBIS	397.5	201.42	32.77	234.19	26/3.14	7/2.44	19.88	558	256	814	72.11	0.1438
LARK	397.5	201.42	46.97	248.39	30/2.92	7/2.92	20.44	560	367	927	88.69	0.1442
PELICAN	477	241.68	13.42	255.10	18/4.14	1/4.14	20.70	666	105	771	52.16	0.1193
FLICKER	477	241.68	31.29	272.97	24/3.58	7/2.39	21.49	670	245	915	76.66	0.1199
HAWK	477	241.68	39.42	281.10	26/3.44	7/2.67	21.79	670	308	978	86.65	0.1199
HEN	477	241.68	56.39	298.07	30/3.20	7/3.20	22.40	671	441	1112	105.34	0.1201
OSPREY	556.5	282.00	15.68	297.68	18/4.47	1/4.47	22.35	777	122	899	60.88	0.1022
PARAKEET	556.5	282.00	36.58	318.58	24/3.87	7/2.58	23.22	781	286	1067	88.22	0.1027
DOVE	556.5	282.00	45.94	327.94	26/3.72	7/2.89	23.55	781	359	1140	101.03	0.1027
EAGLE	556.5	282.00	65.81	347.81	30/3.46	7/3.46	24.21	783	515	1298	122.92	0.103
PEACOCK	605	306.58	39.74	346.32	24/4.03	7/2.69	24.20	849	311	1160	95.88	0.0945
SQUAB	605	306.58	49.94	356.52	26/3.87	7/3.01	24.51	850	390	1240	108.14	0.0945
WOOD DUCK	605	306.58	71.55	378.13	30/3.61	7/3.61	25.25	851	560	1411	128.84	0.0947
TEAL	605	306.58	69.87	376.45	30/3.61	19/2.16	25.24	851	548	1399	133.59	0.0947
KINGBIRD	636	322.26	17.90	340.16	18/4.78	1/4.78	23.88	889	139	1028	69.55	0.08945
ROOK	636	322.26	41.81	364.07	24/4.14	7/2.76	24.84	893	326	1219	100.83	0.08989
GROSBEAK	636	322.26	52.45	374.71	26/3.97	7/3.09	25.15	893	409	1302	111.8	0.08989
SCOTER	636	322.26	75.22	397.48	30/3.70	7/3.70	25.88	895	589	1484	135.44	0.09011
EGRET	636	322.26	73.55	395.81	30/3.70	19/2.22	25.90	894	576	1470	140.3	0.09011
SWIFT	636	322.26	8.96	331.22	36/3.38	1/3.38	23.62	888	70	958	60.52	0.08945
FLAMINGO	666.6	337.74	43.81	381.55	24/4.23	7/2.82	25.40	936	342	1278	105.66	0.08577
GANNET	666.6	337.74	55.03	392.77	26/4.07	7/3.16	25.76	936	429	1365	117.33	0.08577
STILT	715.5	362.58	46.97	409.55	24/4.39	7/2.92	26.31	1005	367	1372	113.35	0.07989
STARLING	715.5	362.58	59.03	421.61	26/4.21	7/3.28	26.68	1005	461	1466	125.91	0.07989
REDWING	715.5	362.58	82.58	445.16	30/3.92	19/2.35	27.43	1006	647	1653	153.94	0.08009
TERN	795	402.84	27.87	430.71	45/3.38	7/2.25	27.03	1116	217	1333	97.37	0.07191
CONDOR	795	402.84	52.19	455.03	54/3.08	7/3.08	27.72	1116	408	1524	124.45	0.07191
CUCKOO	795	402.84	52.19	455.03	24/4.62	7/3.08	27.74	1116	408	1524	123.94	0.07191
DRAKE	795	402.84	65.61	468.35	26/4.44	7/3.45	28.11	1116	512	1628	139.92	0.07191
COOT	795	402.84	11.16	414.00	36/3.77	1/3.77	26.41	1110	88	1198	74.34	0.07156
MALLARD	795	402.84	91.87	494.71	30/4.14	19/2.48	28.96	1119	719	1838	171.18	0.07208
RUDDY	900	456.06	31.54	487.60	45/3.59	7/2.40	28.73	1263	247	1510	108.96	0.06351
CANARY	900	456.06	59.10	515.16	54/3.28	7/3.28	29.52	1263	461	1724	140.95	0.06351
RAIL	954	483.42	33.42	516.84	45/3.70	7/2.47	29.61	1339	262	1601	115.63	0.05992
CATBIRD	954	483.42	13.42	496.84	36/4.14	1/4.14	28.95	1333	105	1438	87.66	0.05962
CARDINAL	954	483.42	62.65	546.07	54/3.38	7/3.38	30.42	1339	490	1829	149.36	0.05992
ORTLAN	1033.5	523.68	36.19	559.87	45/3.85	7/2.57	30.81	1451	283	1734	123.1	0.05531
TANGER	1033.5	523.68	14.51	538.19	36/4.30	1/4.30	30.12	1443	113	1556	94.93	0.05504
CURLEW	1033.5	523.68	67.87	591.55	54/3.52	7/3.52	31.68	1451	530	1981	161.8	0.05531
BLUEJAY	1113	563.93	39.03	602.96	45/4.00	7/2.66	31.98	1563	305	1868	132.63	0.05136
FINCH	1113	563.93	71.55	635.48	54/3.65	19/2.19	32.85	1570	560	2150	174.41	0.05161
BUNTING	1192.5	604.26	41.55	645.81	45/4.14	7/2.76	33.12	1674	327	2001	141.79	0.04793
GRACKLE	1192.5	604.26	76.58	680.84	54/3.77	19/2.27	33.97	1682	600	2282	186.38	0.04817
BITTERN	1272	644.51	44.52	689.03	45/4.27	7/2.85	34.17	1785	349	2134	151.48	0.04494
PHEASANT	1272	644.51	81.68	726.19	54/3.90	19/2.34	35.10	1795	638	2433	194	0.04516
SKYLARK	1272	644.51	17.87	662.38	36/4.78	1/4.78	33.42	1777	140	1917	115.85	0.04472
DIPPER	1351.5	684.84	47.10	731.94	45/4.40	7/2.92	35.16	1898	368	2266	160.7	0.0423
MARTIN	1351.5	684.84	86.71	771.55	54/4.02	19/2.41	36.17	1906	679	2585	206.05	0.0425
BOBOLINK	1431	725.10	50.32	775.42	45/4.53	7/3.02	36.24	2009	393	2402	170.71	0.03994
PLOVER	1431	725.10	91.87	816.97	54/4.14	19/2.48	37.24	2019	719	2738	218.24	0.04013
NUTHATCH	1510.5	765.35	52.90	818.25	45/4.65	7/3.10	37.20	2120	414	2534	177.89	0.03784
PARROT	1510.5	765.35	96.84	862.19	54/4.25	19/2.55	38.25	2131	759	2890	230.2	0.03802
LAPWING	1590	805.68	55.48	861.16	45/4.77	7/3.18	38.16	2232	435	2667	187.02	0.03595
FALCON	1590	805.68	102.13	907.81	54/4.36	19/2.62	39.26	2243	799	3042	242.55	0.03613
CHUKAR	1780	902.7	73.51	902.72	84/3.70	19/2.22	40.70	2511	575	3086	226.85	0.03245
BLUEBIRD	2156	1092.0	88.80	1092.28	84/4.07	19/2.44	44.76	3036	697	3733	268.30	0.02681
KIWI	2167	1100.0	47.50	1099.20	72/4.41	7/2.94	44.07	3057	370	3427	221.60	0.02684
HIGH STRENGTH STRANDING
GROUSE	80	40.52	14.13	54.65	8/2.54	1/4.24	9.32	112	110	222	23.6	0.7115
PETREL	101.8	51.61	30.06	81.67	12/2.34	7/2.34	11.71	143	235	378	41.75	0.5613
MINORCA	110.8	56.13	32.77	88.90	12/2.44	7/2.44	12.22	156	256	412	51.25	0.5161
LEGHORN	134.6	68.19	39.81	108.00	12/2.69	7/2.69	13.46	189	311	500	61.7	0.4248
GUINEA	159	80.58	46.97	127.55	12/2.92	7/2.92	14.63	223	367	590	72.55	0.3595
DOTTEREL	176.9	89.48	52.19	141.67	12/3.08	7/3.08	15.42	248	409	657	78.5	0.3237
DORKING	190.8	96.71	56.39	153.10	12/3.20	7/3.20	16.03	268	441	709	84.8	0.2995
BRAHMA	203.2	102.97	91.87	194.84	16/2.86	19/2.48	18.14	285	722	1007	128.8	0.2813
COCHIN	211.8	107.10	62.45	169.55	12/3.37	7/3.37	16.84	297	488	785	93.9	0.2705

Aluminum Conductors Steel Reinforced BS 215 Part 2
Code name	Area				Stranding and wire diameter		Approx. overall diameter mm	Weight			Nominal breaking load kN	Nominal DC resistance at 20 deg. Ohm/km
	Nominal Alum. mm2	Alum. mm2	Steel mm2	Total mm2	Alum. mm	Steel mm		Alum. kg/km	Steel kg/km	Total kg/km
	Nominal Alum. mm2	Alum. mm2	Steel mm2	Total mm2	Alum. mm	Steel mm		Alum. kg/km	Steel kg/km	Total kg/km
MOLE	10	10.62	1.77	12.39	6/1.50	1/1.50	4.50	29	14	43	4.14	2.076
SQUIRREL	20	20.94	3.49	24.43	6/2.11	1/2.11	6.33	58	27	85	7.88	1.368
GOPHER	25	26.25	4.37	30.62	6/2.36	1/2.36	7.08	72	34	106	9.61	1.093
WEASEL	30	31.61	5.27	36.88	6/2.59	1/2.59	7.77	87	41	128	11.45	0.9077
FOX	35	36.66	6.11	42.77	6/2.79	1/2.79	8.37	101	48	149	13.20	0.7822
FERRET	40	42.41	7.07	49.48	6/3.00	1/3.00	9.00	117	55	172	15.20	0.6766
RABBIT	50	52.88	8.82	61.70	6/3.35	1/3.35	10.05	145	69	214	18.35	0.5426
MINK	60	63.18	10.53	73.71	6/3.66	1/3.66	10.98	173	82	255	21.80	0.4545
SKUNK	60	63.27	36.93	100.30	12/2.59	7/2.59	12.95	175	290	465	53.00	0.4567
BEAVER	70	74.82	12.47	87.29	6/3.99	1/3.99	11.97	205	97	302	25.70	0.3825
HORSE	70	73.37	42.80	116.17	12/2.79	7/2.79	13.95	203	335	538	61.20	0.3936
RACOON	75	79.20	13.20	92.40	6/4.10	1/4.10	12.30	217	103	320	27.20	0.3622
OTTER	80	83.88	13.98	97.86	6/4.22	1/4.22	12.66	230	109	339	28.80	0.3419
CAT	90	95.40	15.90	111.30	6/4.50	1/4.50	13.50	262	124	386	32.70	0.3007
HARE	100	105.00	17.50	122.50	6/4.72	1/4.72	14.16	288	137	425	36.00	0.2733

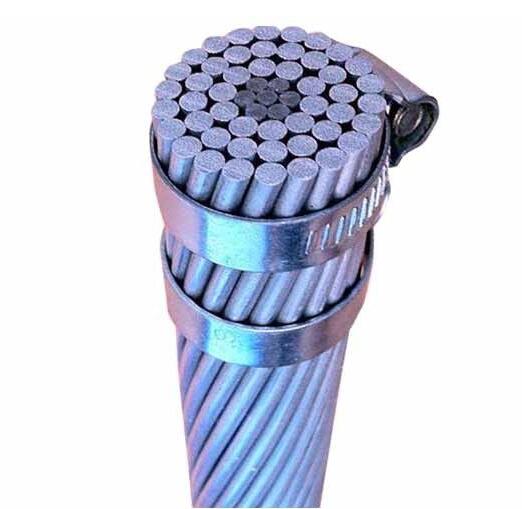

DOG	100	105.00	13.50	118.50	6/4.72	7/1.57	14.15	288	106	394	32.70	0.2733
HYENA	100	105.80	20.44	126.20	7/4.39	7/1.93	14.57	290	160	450	40.90	0.2712
LEOPARD	125	131.30	16.80	148.10	6/5.28	7/1.75	15.81	360	132	492	40.70	0.2184
COYOTE	125	132.10	20.10	152.20	26/2.54	7/1.91	15.89	365	157	522	46.40	0.2187
COUGAR	125	130.30	7.25	137.50	18/3.05	1/3.05	15.25	362	57	419	29.80	0.2189
TIGER	125	131.10	30.60	161.70	30/2.36	7/2.36	16.52	362	240	602	58.00	0.2202
WOLF	150	158.00	36.90	194.90	30/2.59	7/2.59	18.13	437	289	726	69.20	0.1828
DINGO	150	158.70	8.80	167.50	18/3.35	1/3.35	16.75	437	69	506	35.70	0.1815
LYNX	175	183.40	42.80	226.20	30/2.79	7/2.79	19.53	507	335	842	79.80	0.1576
CARACAL	175	184.20	10.30	194.50	18/3.61	1/3.61	18.05	507	80	587	41.10	0.1563
PANTHER	200	212.00	49.50	261.50	30/3.00	7/3.00	21.00	586	388	974	92.25	0.1363
LION	225	238.50	55.60	294.20	30/3.18	7/3.18	22.26	659	436	1095	109.60	0.1212
BEAR	250	264.00	61.60	325.60	30/3.35	7/3.35	23.45	730	483	1213	111.10	0.1093
GOAT	300	324.30	75.70	400.00	30/3.71	7/3.71	25.97	896	593	1489	135.70	0.0891
SHEEP	350	374.10	87.30	461.40	30/3.99	7/3.99	27.93	1034	684	1718	155.90	0.07704
ANTELOPE	350	373.10	48.40	421.50	54/2.97	7/2.97	26.73	1032	379	1411	118.20	0.07727
BISON	350	381.80	49.50	431.30	54/3.00	7/3.00	27.00	1056	388	1444	120.90	0.07573
JAGUAR	200	210.60	11.70	222.30	18/3.86	1/3.86	19.30	580	91	671	46.55	0.13670
DEER	400	429.30	100.20	529.50	30/4.27	7/4.27	29.89	1186	785	1971	178.50	0.06726
ZEBRA	400	428.90	55.60	484.50	54/3.18	7/3.18	28.62	1186	435	1621	131.90	0.06740
ELK	450	477.00	111.30	588.30	30/4.50	7/4.50	31.50	1318	872	2190	198.20	0.06056
CAMEL	450	475.20	61.60	536.80	54/3.35	7/3.35	30.15	1314	483	1797	145.70	0.06073
MOOSE	500	528.70	68.50	597.20	54/3.53	7/3.53	31.77	1462	537	1999	161.10	0.05470

Aluminum Conductors Steel Reinforced DIN 48204
Area				Stranding and wire diameter		Overall Diameter	Linear mass			Nominal breaking load	Maximum resistance at 20℃
Nominal	Actual			Stranding and wire diameter			Linear mass
Al/St	Al	St	Total	Al	St		Al	St	Total
mm2	mm2	mm2	mm2	mm	mm	mm	kg/km	kg/km	kg/km	daN	ohm/km
16/2.5	15.3	2.5	17.8	6/1.80	1/1.80	5.4	42	20	62	595	1.878
25/4.0	23.8	4.0	27.8	6/2.25	1/2.25	6.8	65	32	97	920	1.2002
35/6.0	34.3	5.7	40.0	6/2.70	1/2.70	8.1	94	46	140	1265	0.8352
44/32.0	44.0	31.7	75.7	14/2.00	7/2.40	11.2	122	250	372	4500	0.6573
50/8.0	48.3	8.0	56.3	6/3.20	1/3.20	9.6	132	64	196	1710	0.5946
50/30	51.2	29.8	81.0	12/2.33	7/2.33	11.7	141	237	378	4380	0.5643
70/12	69.9	11.4	81.3	26/1.85	7/1.44	11.7	193	91	284	2680	0.413
95/15	94.4	15.3	109.7	26/2.15	7/1.67	13.6	260	123	383	3575	0.3058
95/55	96.5	56.3	152.8	12/3.20	7/3.20	16.0	266	446	712	7935	0.2992
105/75	105.7	75.5	181.5	14/3.10	9/2.25	17.5	292	599	891	10845	0.2735
120/20	121.06	19.8	141.4	26/2.44	7/1.90	15.5	336	158	494	4565	0.2374
120/70	122.0	71.3	193.3	12/3.6	7/3.60	18.0	337	564	901	10000	0.2364
125/30	127.9	29.8	157.7	30/2.33	7/2.33	16.3	353	238	591	5760	0.2259
150/25	148.9	24.2	173.1	26/2.70	7/2.10	17.1	411	194	605	5525	0.1939
170/40	171.8	40.1	211.9	30/2.70	7/2.70	18.9	475	319	794	7675	0.1682
185/30	183.8	29.8	213.6	26/3.00	7/2.33	19.0	507	239	746	6620	0.1571
210/35	209.1	34.1	243.2	26/3.20	7/2.49	20.3	577	273	850	7490	0.138
210/50	212.1	49.5	261.6	30/3.00	7/3.00	21.0	587	394	981	9390	0.1362
230/30	230.9	29.8	260.7	24/3.50	7/2.33	21.0	638	239	877	7310	0.1249
240/40	243.0	39.5	282.5	26/3.45	7/2.68	21.9	671	316	987	8640	0.1188
265/35	263.7	34.1	297.8	24/3.74	7/2.49	22.4	728	274	1002	8305	0.1094
300/50	304.3	49.5	353.7	26/3.86	7/3.00	24.5	840	396	1236	10700	0.09487
305/40	304.6	39.5	344.1	54/2.68	7/2.68	24.1	843	317	1160	9940	0.0949
340/30	339.3	29.8	369.1	48/3.00	7/2.33	25.0	938	242	1180	9290	0.08509
380/50	382.0	49.5	431.5	54/3.00	7/3.00	27.0	1056	397	1453	12310	0.08509
385/35	386.0	34.1	420.1	48/3.20	7/2.49	26.7	1067	277	1344	10480	0.07573
435/55	434.03	59.3	490.6	54/3.20	7/3.20	28.8	1203	450	1653	13645	0.07478
450/40	448.7	39.5	488.2	48/3.45	7/2.68	28.7	1241	320	1561	12075	0.06656
490/65	490.3	63.6	553.9	54/3.40	7/3.40	30.6	1356	510	1866	15310	0.06434
495/35	494.1	34.1	528.2	45/3.74	7/2.49	29.9	1363	283	1646	12180	0.05846
510/45	510.2	45.3	555.5	48/3.68	7/2.87	30.7	1413	365	1778	13665	0.05655
550/70	550.0	71.3	621.3	54/3.60	7/3.60	32.4	1520	572	2092	17060	0.05259
560/50	561.7	49.5	611.2	48/3.86	7/3.00	32.2	1553	401	1954	14895	0.0514
570/40	565.5	39.5	610.3	45/4.02	7/2.68	32.2	1563	325	1888	13900	0.05108
650/45	698.8	45.3	653.49	45/4.30	7/2.87	34.4	1791	372	2163	15552	0.0442
680/85	678.8	86.0	764.8	54/4.00	19/2.40	36.0	1868	702	2570	21040	0.0426
1045/45	1045.58	45.3	1090.9	72/4.30	7/2.87	43.0	2879	370	3249	21787	0.0277

Aluminum Conductors Steel Reinforced (ACSR) IEC 61089
Characteristics of A1/S1A Conductors
Code number	Steel ratio	Areas			No. of wires	Wire diam.		Diameter		Linear mass	Rated strength	D.C resistance
	Steel ratio	Alum.	Steel	Total	No. of wires	Alum.	Steel	Core	Cond.	Linear mass	Rated strength	D.C resistance
	%	mm2	mm2	mm2	Al/St.	mm	mm	mm	mm	kg/km	kN	Ohn/km
16	17	16	2.67	18.7	6/1	1.84	1.84	1.84	5.53	64.6	6.08	1.7934
25	17	25	4.17	29.2	6/1	2.30	2.30	2.30	6.91	100.9	9.13	1.1478
40	17	40	6.67	46.7	6/1	2.91	2.91	2.91	8.74	161.5	14.40	0.7174
63	17	63	10.5	73.5	6/1	3.66	3.66	3.66	11.0	254.4	21.63	0.4555
100	17	100	16.7	117	6/1	4.61	4.61	4.61	13.8	403.8	34.33	0.2869
125	6	125	6.94	132	18/1	2.97	2.97	2.97	14.9	397.9	29.17	0.2304
125	16	125	20.4	145	26/7	2.47	1.92	5.77	15.7	503.9	45.69	0.2310
160	6	160	8.89	169	18/1	3.36	3.36	3.36	16.8	509.3	36.18	0.1800
160	16	160	26.1	186	26/7	2.80	2.18	6.53	17.7	644.9	57.69	0.1805
200	6	200	11.1	211	18/1	3.76	3.76	3.76	18.8	636.7	44.22	0.1440
200	16	200	32.6	233	26/7	3.13	2.43	7.30	19.8	806.2	70.13	0.1444
250	10	250	24.6	275	22/7	3.80	2.11	6.34	21.6	880.6	68.72	0.1154
250	16	250	40.7	291	26/7	3.50	2.72	8.16	22.2	1007.7	87.67	0.1155
315	7	315	21.8	337	45/7	2.99	1.99	5.97	23.9	1039.6	79.03	0.0917
315	16	315	51.3	366	26/7	3.93	3.05	9.16	24.9	1269.7	106.83	0.0917
400	7	400	27.7	428	45/7	3.36	2.24	6.73	26.9	1320.1	98.36	0.0722
400	13	400	51.9	452	54/7	3.07	3.07	9.21	27.6	1510.3	123.04	0.0723
450	7	450	31.1	481	45/7	3.57	2.38	7.14	28.5	1485.2	107.47	0.0642
450	13	450	58.3	508	54/7	3.26	3.26	9.77	29.3	1699.1	138.42	0.0643
500	7	500	34.6	535	45/7	3.76	2.51	7.52	30.1	1650.2	119.41	0.0578
500	13	500	64.8	565	54/7	3.43	3.43	10.30	30.9	1887.9	153.80	0.0578
560	7	560	38.7	599	45/7	3.98	2.65	7.96	31.8	1848.2	133.74	0.0516
560	13	560	70.9	631	54/7	3.63	2.18	10.90	32.7	2103.4	172.59	0.0516
630	7	630	43.6	674	45/7	4.22	2.81	8.44	33.8	2079.2	150.45	0.0459
630	13	630	79.8	710	54/7	3.85	2.31	11.60	34.7	2366.3	191.77	0.0459
710	7	710	49.1	759	45/7	4.48	2.99	8.96	35.9	2343.2	169.56	0.0407
710	13	710	89.9	800	54/7	4.09	2.45	12.30	36.8	2666.8	216.12	0.0407
800	4	800	34.6	835	72/7	3.76	2.51	7.52	37.6	2480.2	167.41	0.0361
800	8	800	66.7	867	84/7	3.48	3.48	10.40	38.3	2732.7	205.33	0.0362
800	13	800	101	901	54/19	4.44	2.61	13.00	39.1	3004.9	243.52	0.0362
900	4	900	38.9	939	72/7	3.99	2.66	7.98	39.9	2790.2	188.33	0.0321
900	8	900	75.0	975	84/7	3.69	3.69	11.10	40.6	3074.2	226.50	0.0322
1000	4	1000	43.2	1043	72/7	4.21	2.80	8.41	42.1	3100.3	209.26	0.0289
1120	4	1120	47.3	1167	72/19	4.45	1.78	8.90	44.5	3464.9	234.53	0.0258
1120	8	1120	91.2	1211	84/19	4.12	2.47	12.40	45.3	3811.5	283.17	0.0258
1250	8	1250	102	1352	84/19	4.35	2.61	13.10	47.9	4253.9	316.04	0.0232
1250	4	1250	52.8	1303	72/19	4.70	1.88	9.40	47.0	3867.1	261.75	0.0231

Aluminum Conductors Steel Reinforced IEC 61089
Characteristics of A1/S1B Conductors
Code number	Steel ratio	Areas			No. of wires	Wire diam.		Diameter		Linear mass	Rated strength	D.C resistance
	Steel ratio	Alum.	Steel	Total	No. of wires	Alum.	Steel	Core	Cond.	Linear mass	Rated strength	D.C resistance
	%	mm2	mm2	mm2	Al/St.	mm	mm	mm	mm	kg/km	kN	Ohm/km
16	17	16	2.67	18.7	6/1	1.84	1.84	1.84	5.53	64.6	5.89	1.7934
25	17	25	4.17	29.2	6/1	2.3	2.3	2.3	6.91	100.9	8.83	1.1478
40	17	40	6.67	46.7	6/1	2.91	2.91	2.91	8.74	161.5	13.93	0.7174
63	17	63	10.5	73.5	6/1	3.66	3.66	3.66	11	254.4	20.58	0.4555
100	17	100	16.7	117	6/1	4.61	4.61	4.61	13.8	403.8	32.67	0.2869
125	6	125	6.94	132	18/1	2.97	2.97	2.97	14.9	397.9	28.68	0.2304
125	16	125	20.4	145	26/7	2.47	1.92	5.77	15.7	503.9	44.27	0.2310
160	6	160	8.89	169	18/1	3.36	3.36	3.36	16.8	509.3	35.29	0.1800
160	16	160	26.1	186	26/7	2.8	2.18	6.53	17.7	644.9	55.86	0.1805
200	6	200	11.1	211	18/1	3.76	3.76	3.76	18.8	636.7	43.11	0.1440
200	16	200	32.6	233	26/7	3.13	2.43	7.3	19.8	806.2	67.85	0.1444
250	10	250	24.6	275	22/7	3.8	2.11	6.34	21.6	880.6	67.01	0.1154
250	16	250	40.7	291	26/7	3.5	2.72	8.16	22.2	1007.7	84.82	0.1155
315	7	315	21.8	337	45/7	2.99	1.99	5.97	23.9	1039.6	77.51	0.0917
315	16	315	51.3	366	26/7	3.93	3.05	9.16	24.9	1269.7	101.70	0.0917
400	7	400	27.7	428	45/7	3.36	2.24	6.73	26.9	1320.1	96.42	0.0722
400	13	400	51.9	452	54/7	3.07	3.07	9.21	27.6	1510.3	117.85	0.0723
450	7	450	31.1	481	45/7	3.57	2.38	7.14	28.5	1485.2	105.29	0.0642
450	13	450	58.3	508	54/7	3.26	3.26	9.77	29.3	1699.1	132.58	0.0643
500	7	500	34.6	535	45/7	3.76	2.51	7.52	30.1	1650.2	116.99	0.0578
500	13	500	64.8	565	54/7	3.43	3.43	10.3	30.9	1887.9	147.31	0.0578
560	7	560	38.7	599	45/7	3.98	2.65	7.96	31.8	1848.2	131.03	0.0516
560	13	560	70.9	631	54/7	3.63	2.18	10.9	32.7	2103.4	167.63	0.0516
630	7	630	43.6	674	45/7	4.22	2.81	8.44	33.8	2079.2	147.40	0.0459
630	13	630	79.8	710	54/7	3.85	2.31	11.6	34.7	2366.3	186.19	0.0459
710	7	710	49.1	759	45/7	4.48	2.99	8.96	35.9	2343.2	166.12	0.0407
710	13	710	89.9	800	54/7	4.09	2.45	12.3	36.8	2666.8	209.83	0.0407
800	4	800	34.6	835	72/7	3.76	2.51	7.52	37.6	2480.2	164.99	0.0361
800	8	800	66.7	867	84/7	3.48	3.48	10.4	38.3	2732.7	198.67	0.0362
800	13	800	101	901	54/19	4.34	2.61	13	39.1	3004.9	236.43	0.0362
900	4	900	38.9	939	72/7	3.99	2.66	7.98	39.9	2790.2	185.61	0.0321
900	8	900	75	975	84/7	3.69	3.69	11.1	40.6	3074.2	219.00	0.0322
1000	4	1000	43.2	1043	72/7	4.21	2.8	8.41	42.1	3100.3	206.23	0.0289
1120	4	1120	47.3	1167	72/19	4.45	1.78	8.9	44.5	3464.9	231.22	0.0258
1120	8	1120	91.2	1211	84/19	4.12	2.47	12.4	45.3	3811.5	276.78	0.0258
1250	4	1250	52.8	1303	84/19	4.7	1.88	9.4	47	3867.1	258.06	0.0231
1250	8	1250	102	1352	72/19	4.35	2.61	13.1	47.9	4253.9	308.91	0.0232


Aluminum Conductors Steel Reinforced IEC 61089
Characteristics of A1/S2A Conductors
Code number	Steel ratio	Areas			No. of wires	Wire diam.		Diameter		Linear mass	Rated strength	D.C resistance
	Steel ratio	Alum.	Steel	Total	No. of wires	Alum.	Steel	Core	Cond.	Linear mass	Rated strength	D.C resistance
	%	mm2	mm2	mm2	Al/St.	mm	mm	mm	mm	kg/km	kN	Ohn/km
16	17	16	2.67	18.7	6/1	1.84	1.84	1.84	5.53	64.6	6.45	1.7934
25	17	25	4.17	29.2	6/1	2.30	2.30	2.30	6.91	100.9	9.71	1.1478
40	17	40	6.67	46.7	6/1	2.91	2.91	2.91	8.74	161.5	15.33	0.7174
63	17	63	10.5	73.5	6/1	3.66	3.66	3.66	11.0	254.4	22.37	0.4555
100	17	100	16.7	117	6/1	4.61	4.61	4.61	13.8	403.8	35.50	0.2869
125	6	125	6.94	132	18/1	2.97	2.97	2.97	14.9	397.9	30.14	0.2304
125	16	125	20.4	145	26/7	2.47	1.92	5.77	15.7	503.9	48.54	0.2310
160	6	160	8.89	169	18/1	3.36	3.36	3.36	16.8	509.3	37.42	0.1800
160	16	160	26.1	186	26/7	2.80	2.18	6.53	17.7	644.9	61.34	0.1805
200	6	200	11.1	211	18/1	3.76	3.76	3.76	18.8	636.7	45.00	0.1440
200	16	200	32.6	233	26/7	3.13	2.43	7.30	19.8	806.2	74.69	0.1444
250	10	250	24.6	275	22/7	3.80	2.11	6.34	21.6	880.6	72.16	0.1154
250	16	250	40.7	291	26/7	3.50	2.72	8.16	22.2	1007.7	93.37	0.1155
315	7	315	21.8	337	45/7	2.99	1.99	5.97	23.9	1039.3	82.08	0.0917
315	16	315	51.3	366	26/7	3.93	3.05	9.16	24.9	1269.7	114.02	0.0917
400	7	400	27.7	428	45/7	3.36	2.24	6.73	26.9	1320.1	102.23	0.0722
400	13	400	51.9	452	54/7	3.07	3.07	9.21	27.6	1510.3	130.30	0.0723
450	7	450	31.1	481	45/7	3.57	2.38	7.14	28.5	1485.2	111.82	0.0642
450	13	450	58.3	508	54/7	3.26	3.26	9.77	29.3	1699.1	146.58	0.0643
500	7	500	34.6	535	45/7	3.76	2.51	7.52	30.1	1650.2	124.25	0.0578
500	13	500	64.8	565	54/7	3.43	3.43	10.30	30.9	1887.9	162.87	0.0578
560	7	560	38.7	599	45/7	3.98	2.65	7.96	31.8	1848.2	139.16	0.0516
560	13	560	70.9	631	54/7	3.63	2.18	10.90	32.7	2103.4	182.52	0.0516
630	7	630	43.6	674	45/7	4.22	2.81	8.44	33.8	2079.2	156.55	0.0459
630	13	630	79.8	710	54/7	3.85	2.31	11.60	34.7	2366.3	202.94	0.0459
710	7	710	49.1	759	45/7	4.48	2.99	8.96	35.9	2343.2	176.43	0.0407
710	13	710	89.9	800	54/7	4.09	2.45	12.30	36.8	2666.8	228.71	0.0407
800	4	800	34.6	835	72/7	3.76	2.51	7.52	37.6	2480.2	172.25	0.0361
800	8	800	66.7	867	84/7	3.48	3.48	10.40	38.3	2732.7	214.67	0.0362
800	13	800	101	901	54/19	4.44	2.61	13.00	39.1	3004.9	257.71	0.0362
900	4	900	38.9	939	72/7	3.99	2.66	7.98	39.9	2790.2	193.78	0.0321
900	8	900	75	975	84/7	3.69	3.69	11.10	40.6	3074.2	231.75	0.0322
1000	4	1000	43.2	1043	72/7	4.21	2.80	8.41	42.1	3100.3	215.31	0.0289
1120	4	1120	47.3	1167	72/19	4.45	1.78	8.90	44.5	3464.9	241.15	0.0258
1120	8	1120	91.2	1211	84/19	4.12	2.47	12.40	45.3	3811.5	295.94	0.0258
1250	4	1250	52.8	1303	84/19	4.70	1.88	9.40	47	3867.1	269.14	0.0231
1250	8	1250	102	1352	72/19	4.35	2.61	13.10	47.9	4253.9	330.29	0.0232

Aluminum Conductors Steel Reinforced IEC 61089
Characteristics of A1/S2B Conductors
Code number	Steel ratio	Areas			No. of wires	Wire diam.		Diameter		Linear mass	Rated strength	D.C resistance
	Steel ratio	Alum.	Steel	Total	No. of wires	Alum.	Steel	Core	Cond.	Linear mass	Rated strength	D.C resistance
	%	mm2	mm2	mm2	Al/St.	mm	mm	mm	mm	kg/km	kN	Ohn/km
16	17	16	2.67	18.7	6/1	1.84	1.84	1.84	5.53	64.6	6.27	1.7934
25	17	25	4.17	29.2	6/1	2.30	2.30	2.30	6.91	100.9	9.42	1.1478
40	17	40	6.67	46.7	6/1	2.91	2.91	2.91	8.74	161.5	14.87	0.7174
63	17	63	10.5	73.5	6/1	3.66	3.66	3.66	11.0	254.4	21.63	0.4555
100	17	100	16.7	117	6/1	4.61	4.61	4.61	13.8	403.8	34.33	0.2869
125	6	125	6.94	132	18/1	2.97	2.97	2.97	14.9	397.9	29.65	0.2304
125	16	125	20.4	145	26/7	2.47	1.92	5.77	15.7	503.9	47.12	0.2310
160	6	160	8.89	169	18/1	3.36	3.36	3.36	16.8	509.3	36.80	0.1800
160	16	160	26.1	186	26/7	2.80	2.18	6.53	17.7	644.9	59.51	0.1805
200	6	200	11.1	211	18/1	3.76	3.76	3.76	18.8	636.7	44.22	0.1440
200	16	200	32.6	233	26/7	3.13	2.43	7.30	19.8	806.2	72.41	0.1444
250	10	250	24.6	275	22/7	3.80	2.11	6.34	21.6	880.6	70.44	0.1154
250	16	250	40.7	291	26/7	3.50	2.72	8.16	22.2	1007.7	90.52	0.1155
315	7	315	21.8	337	45/7	2.99	1.99	5.97	23.9	1039.6	80.55	0.0917
315	16	315	51.3	366	26/7	3.93	3.05	9.16	24.9	1269.7	110.43	0.0917
400	7	400	27.7	428	45/7	3.36	2.24	6.73	26.9	1320.1	100.29	0.0722
400	13	400	51.9	452	54/7	3.07	3.07	9.21	27.6	1510.3	126.67	0.0723
450	7	450	31.1	481	45/7	3.57	2.38	7.14	28.5	1485.2	109.64	0.0642
450	13	450	58.3	508	54/7	3.26	3.26	9.77	29.3	1699.1	142.50	0.0643
500	7	500	34.6	535	45/7	3.76	2.51	7.52	30.1	1650.2	121.83	0.0578
500	13	500	64.8	565	54/7	3.43	3.43	10.30	30.9	1887.9	158.33	0.0578
560	7	560	38.7	599	45/7	3.98	2.65	7.96	31.8	1848.2	136.45	0.0516
560	13	560	70.9	631	54/7	3.63	2.18	10.90	32.7	2103.4	177.56	0.0516
630	7	630	43.6	674	45/7	4.22	2.81	8.44	33.8	2079.2	153.50	0.0459
630	13	630	79.8	710	54/7	3.85	2.31	11.60	34.7	2366.3	197.36	0.0459
710	7	710	49.1	759	45/7	4.48	2.99	8.96	35.9	2343.2	172.99	0.0407
710	13	710	89.9	800	54/7	4.09	2.45	12.30	36.8	2666.8	222.42	0.0407
800	4	800	34.6	835	72/7	3.76	2.51	7.52	37.6	2480.2	169.83	0.0361
800	8	800	66.7	867	84/7	3.48	3.48	10.40	38.3	2732.7	210.00	0.0362
800	13	800	101	901	54/19	4.34	2.61	13.00	39.1	3004.9	250.61	0.0362
900	4	900	38.9	939	72/7	3.99	2.66	7.98	39.9	2790.2	191.06	0.0321
900	8	900	75	975	84/7	3.69	3.69	11.10	40.6	3074.2	226.50	0.0322
1000	4	1000	43.2	1043	72/7	4.21	2.80	8.41	42.1	3100.3	212.28	0.0289
1120	4	1120	47.3	1167	72/19	4.45	1.78	8.90	44.5	3464.9	237.84	0.0258
1120	8	1120	91.2	1211	84/19	4.12	2.47	12.40	45.3	3811.5	289.55	0.0258
1250	4	1250	52.8	1303	84/19	4.70	1.88	9.40	47.0	3867.1	265.44	0.0231
1250	8	1250	102	1352	72/19	4.35	2.61	13.10	47.9	4253.9	323.16	0.0232

Aluminum Conductors Steel Reinforced IEC 61089
Characteristics of A1/S3A Conductors
Code number	Steel ratio		Areas					No. of wires		Wire diam.				Diameter			Linear mass		Rated strength		D.C resistance
			Alum.	Steel		Total				Alum.		Steel		Core		Cond.
	%		mm2	mm2		mm2		Al/St.		mm		mm		mm		mm	Kg/km		kN		Ohn/km
16	17		16	2.67		18.7		6/1		1.84		1.84		1.84		5.53	64.6		6.83		1.7934
25	17		25	4.17		29.2		6/1		2.30		2.30		2.30		6.91	100.9		10.25		1.1478
40	17		40	6.67		46.7		6/1		2.91		2.91		2.91		8.74	161.5		16.20		0.7174
63	17		63	10.5		73.5		6/1		3.66		3.66		3.66		11.0	254.4		24.15		0.4555
100	17		100	16.7		117		6/1		4.61		4.61		4.61		13.8	403.8		38.33		0.2869
125	6		125	6.94		132		18/1		2.97		2.97		2.97		14.9	397.9		31.04		0.2304
125	16		125	20.4		145		26/7		2.47		1.92		5.77		15.7	503.9		51.39		0.2310
160	6		160	8.89		169		18/1		3.36		3.36		3.36		16.8	509.3		38.67		0.1800
160	16		160	26.1		186		26/7		2.80		2.18		6.53		17.7	644.9		64.99		0.1805
200	6		200	11.1		211		18/1		3.76		3.76		3.76		18.8	636.7		46.89		0.1440
200	16		200	32.6		233		26/7		3.13		2.43		7.30		19.8	806.2		78.93		0.1444
250	10		250	24.6		275		22/7		3.80		2.11		6.34		21.6	880.6		75.60		0.1154
250	16		250	40.7		291		26/7		3.50		2.72		8.16		22.2	1007.7		98.66		0.1155
315	7		315	21.8		337		45/7		2.99		1.99		5.97		23.9	1039.3		85.13		0.0917
315	16		315	51.3		366		26/7		3.93		3.05		9.16		24.9	1269.7		121.20		0.0917
400	7		400	27.7		428		45/7		3.36		2.24		6.73		26.9	1320.1		106.10		0.0722
400	13		400	51.9		452		54/7		3.07		3.07		9.21		27.6	1510.3		137.56		0.0723
450	7		450	31.1		481		45/7		3.57		2.38		7.14		28.5	1485.2		115.87		0.0642
450	13		450	58.3		508		54/7		3.26		3.26		9.77		29.3	1699.1		154.75		0.0643
500	7		500	34.6		535		45/7		3.76		2.51		7.52		30.1	1650.2		128.74		0.0578
500	13		500	64.8		565		54/7		3.43		3.43		10.30		30.9	1887.9		171.94		0.0578
560	7		560	38.7		599		45/7		3.98		2.65		7.96		31.8	1848.2		144.19		0.0516
560	13		560	70.9		631		54/7		3.63		2.18		10.90		32.7	2103.4		192.45		0.0516
630	7		630	43.6		674		45/7		4.22		2.81		8.44		33.8	2079.2		162.21		0.0459
630	13		630	79.8		710		54/7		3.85		2.31		11.60		34.7	2366.3		213.32		0.0459
710	7		710	49.1		759		45/7		4.48		2.99		8.96		35.9	2343.2		182.81		0.0407
710	13		710	89.9		800		54/7		4.09		2.45		12.30		36.8	2666.8		240.41		0.0407
800	4		800	34.6		835		72/7		3.76		2.51		7.52		37.6	2480.2		176.74		0.0361
800	8		800	66.7		867		84/7		3.48		3.48		10.40		38.3	2732.7		224.00		0.0362
800	13		800	101		901		54/19		4.34		2.61		13.00		39.1	3004.9		270.88		0.0362
900	4		900	38.9		939		72/7		3.99		2.66		7.98		39.9	2790.2		198.83		0.0321
900	8		900	75		975		84/7		3.69		3.69		11.10		40.6	3074.2		244.50		0.0322
1000	4		1000	43.2		1043		72/7		4.21		2.80		8.41		42.1	3100.3		220.93		0.0289
1120	4		1120	47.3		1167		72/19		4.45		1.78		8.90		44.5	3464.9		247.77		0.0258
1120	8		1120	91.2		1211		84/19		4.12		2.47		12.40		45.3	3811.5		307.79		0.0258
1250	8		1250	52.8		1303		84/19		4.70		1.88		9.40		47	3867.1		276.53		0.0231
1250	4		1250	102		1352		72/19		4.35		2.61		13.10		47.9	4253.9		343.52		0.0232
Aluminum Conductors Steel Reinforced JIS C3110-78
Nominal Area		Stranding No./dia.					Calculated area				Overall diameter				Breaking load			Weight		DC resistance at 20℃
		Alum.			Steel		Alum.		Steel		Alum.		Steel
mm2		mm			mm		mm2		mm2		mm		mm		N			kg/km		ohm/km
25		6/2.3			1/2.3		24.93		4.155		6.9		2.3		8894.6			100.7		1.15
32		6/2.6			1/2.6		31.85		5.3		7.8		2.6		11180			128.6		0.899
58		6/3.5			1/3.5		57.73		9.621		10.5		3.5		19417			233.1		0.497
95		6/4.5			1/4.5		95.4		15.9		13.5		4.5		31185			385.2		0.301
120		30/2.3			7/2.3		124.7		29.09		16.1		6.9		54329			573.7		0.233
160		30/2.6			7/2.6		159.3		37.16		18.2		7.8		68450			732.8		0.182
200		30/2.9			7/2.9		198.2		46.24		20.3		8.7		84729			911.7		0.147
240		30/3.2			7/3.2		241.3		56.29		22.4		9.6		100130			1110		0.12
330		26/4.0			7/3.1		326.8		52.84		25.3		9.3		107380			1320		0.0888
410		26/4.5			7/3.5		413.4		67.35		28.5		10.5		136410			1673		0.0702
610		54/3.8			7/3.8		612.4		79.38		34.2		11.4		179950			2320		0.0474
810		45/4.8			7/3.2		814.5		56.29		38.4		9.0		181230			2700		0.0356

Aluminum Conductors Steel Reinforced NF C34-120



Designation
		Area		Total Area	Stranding and wire diameter				Diameter		Nominal breaking load	Nominal DC resistance at 20 ℃	Standard weight
		Aluminum	Steel	Total Area	Aluminum		Steel		Steel Core	condoctor	Nominal breaking load	Nominal DC resistance at 20 ℃	Standard weight
mm2		mm2	mm2	No	&Phi	No.	Φ	mm	mm	daN	Ohm/km	kg/km
CANNA 37.7	28.27	9.42	37.69	9	2.00	3	2.00	4.30	8.30	1540	1.02	155
CANNA 59.7	37.7	21.99	59.69	12	2.00	7	2.00	6.00	10.00	3050	0.765	276
CANNA 75.5	47.71	27.83	75.54	12	2.25	7	2.25	6.75	11.25	3840	0.605	348
CANNA 116.2	94.25	21.99	116.24	30	2.00	7	2.00	6.00	14.00	4145	0.306	432
CROCUS 116.2	94.25	21.99	116.24	30	2.00	7	2.00	6.00	14.00	4740	0.306	432
CANNA 147.1	119.28	27.83	147.11	30	2.25	7	2.25	6.75	15.75	5200	0.243	547
CROCUS 147.1	119.28	27.83	147.11	30	2.25	7	2.25	6.75	15.75	5950	0.243	547
CANNA 181.6	147.26	34.36	181.62	30	2.50	7	2.50	7.50	17.50	6260	0.197	675
CROCUS 181.6	147.26	34.36	181.62	30	2.50	7	2.50	7.50	17.50	7290	0.197	675
CANNA 228	184.72	43.1	227.82	30	2.80	7	2.80	8.40	19.60	7710	0.157	848
CROCUS 228	184.72	43.1	227.82	30	2.80	7	2.80	8.40	19.60	9000	0.157	848
CANNA 288	233.8	54.55	288.35	30	3.15	7	3.15	9.45	22.05	9600	0.1225	1074
CROCUS 288	233.8	54.55	288.35	30	3.15	7	3.15	9.45	22.05	11320	0.1225	1074
CROCUS 297	221.67	75.54	297.21	36	2.80	19	2.25	11.25	22.45	13950	0.1305	1218
CROCUS 412	325.72	85.95	411.67	32	3.60	19	2.40	12.00	26.40	16960	0.0898	1593

Inquiry >>

vip@hngwdl.com0086-371-62518222

Your name :
Your tel :
* Your mail :
Your company :
Your country :
* Inquiry :	Please input your inquiry

Product List

Power Cable Up to 1KV

Power Cable Up to 35KV

Bare Conductors

Aerial Insulated Cable

Rubber Cable

Control Cable

Electric Wires

Hot Product
